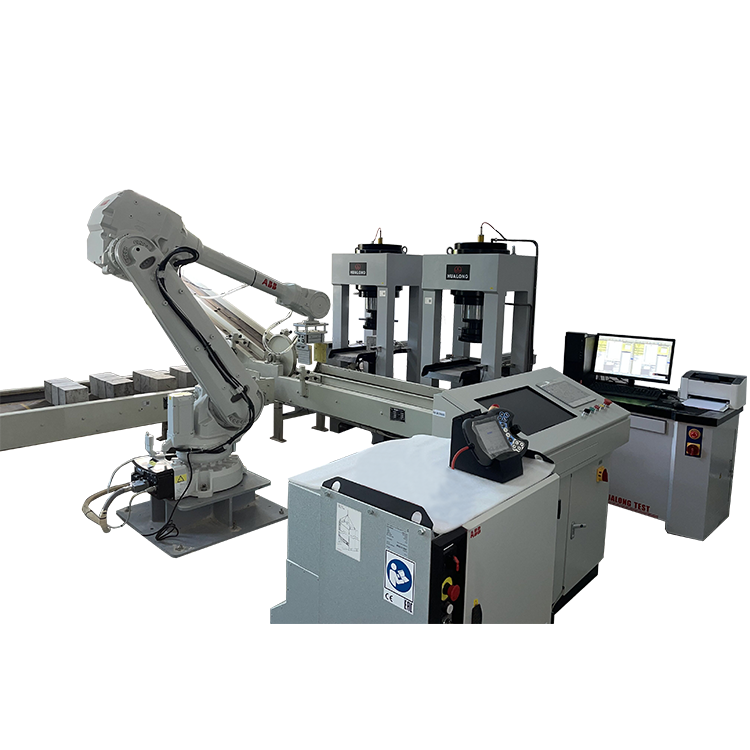

3000kN Robot Automatic Compression Testing System

3000kN Robot Automatic Compression Testing System
3000kN Robot Automatic Compression Testing System
3000kN Robot Automatic Compression Testing System
1. Introduction:
Automatic electro-hydraulic servo pressure testing machine is mainly composed of electro-hydraulic servo pressure testing machine, electric clamping claw, mute servo hydraulic system, servo control system, vision system, automatic feeding platform, automatic cleaning device and other parts.
Automatic electro-hydraulic servo pressure testing machine using hybrid electric power technology, the sample of the feed, compression test, the result judgement, discharging test process was done by the device automatically, eliminate human intervention, ensure the accuracy of the test data and consistency, sustainable work more than 24 hours, improve work efficiency, reduce the labor intensity of the test personnel, Realize the automation and intelligence of the testing machine system.
The automatic electro-hydraulic servo pressure test function can set the loading rate according to the corresponding national standard and meet the standard loading rate control index to carry out the concrete material under the rated test force of the compressive test, with load, time and test curve dynamic display and timely control function and maximum test force maintenance function.

2. Specification:

Model

HL-CTM-3000A

Load capacity(kN)

3000

Test Accuracy

Class 0.5

Host Overall dimensions (Lx W x H)

650×500×1550;

Control cabinet (Lx W x H)

1200×680×750

Maximum vertical clearance of platens

320mm±3mm

Size of lower platen (Diameter*Thick)

Φ300 mm

Size of upper platen(Diameter*Thick)

Φ320 mm

Maximum stroke of the piston

120mm

Maximum speed of piston

30mm/min

Loading speed

20-50psi/s 0.14-0.34MPa/s

Noise

<62dB

Height of distance pieces:

Φ150×300mm / 150×150×150mm / 200×200×200m / preset

Power supply: 3kW; three phase 380V + G 50Hz
Custom power input available
