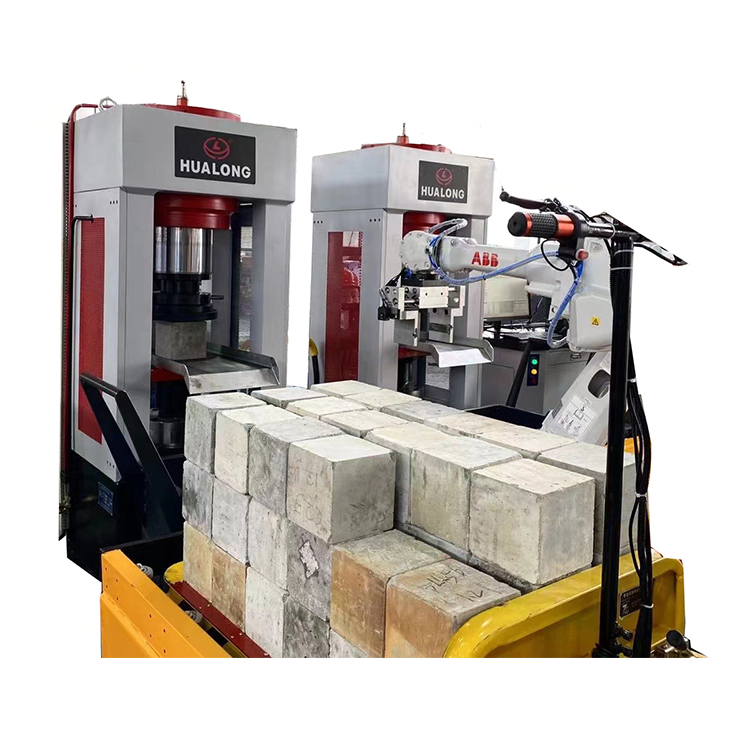

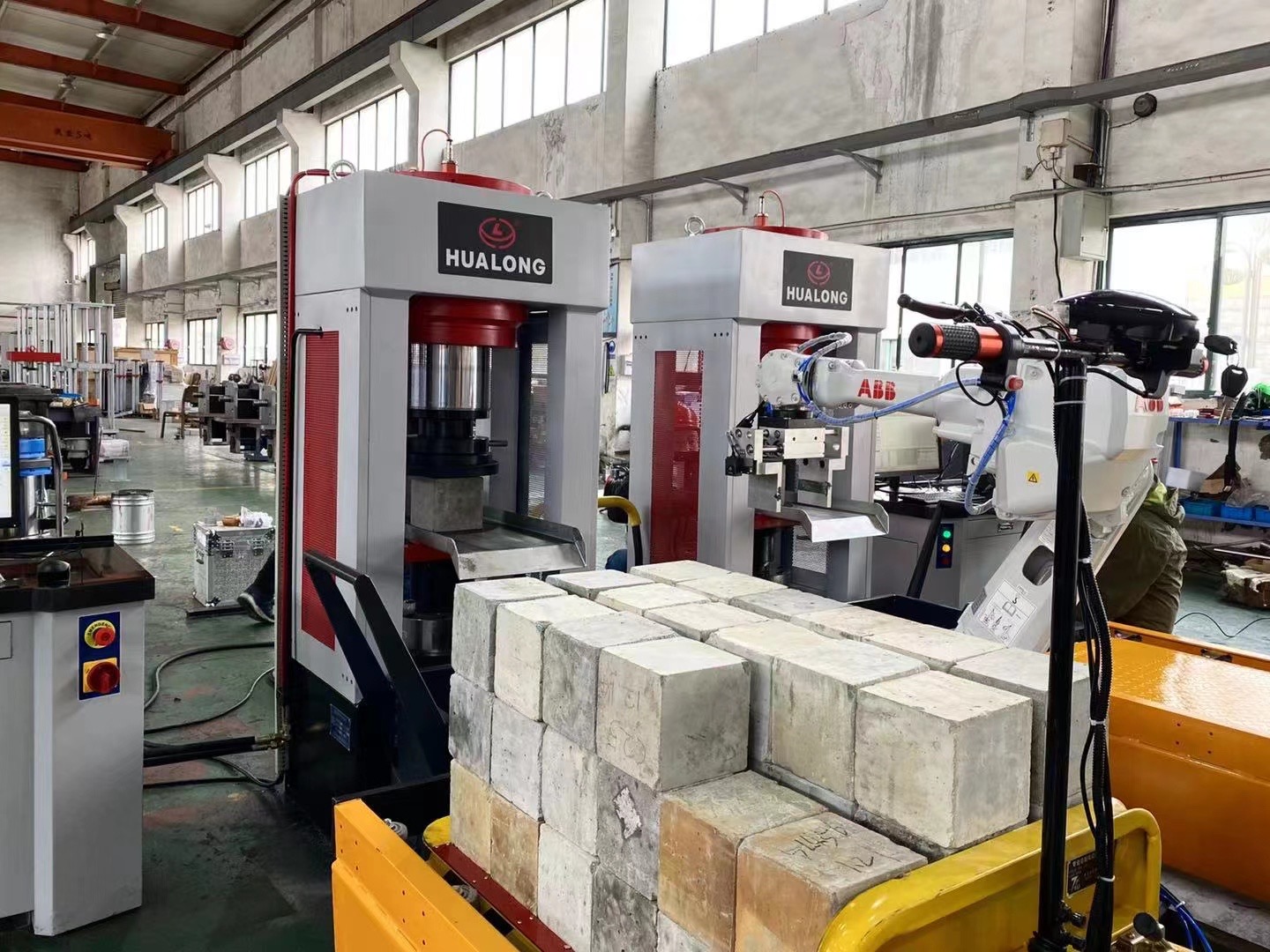

600/1000/2000/3000kN Robot Automatic Compression Testing System

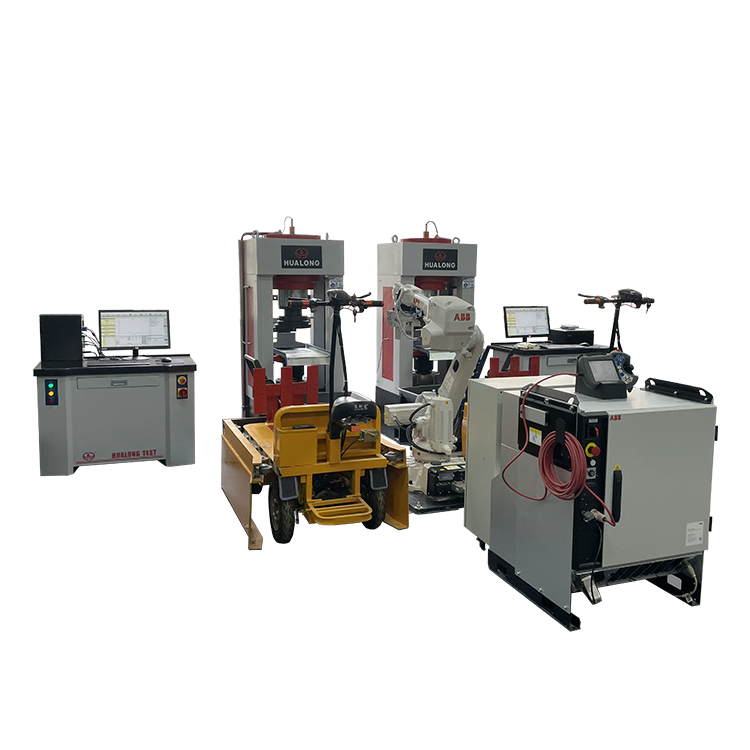

Automatic electro-hydraulic servo pressure testing machine is mainly composed of electro-hydraulic servo pressure testing machine, electric clamping claw, mute servo hydraulic system, servo control system, vision system, automatic feeding platform, automatic cleaning device and other parts.
Automatic electro-hydraulic servo pressure testing machine using hybrid electric power technology, the sample of the feed, compression test, the result judgement, discharging test process was done by the device automatically, eliminate human intervention, ensure the accuracy of the test data and consistency, sustainable work more than 24 hours, improve work efficiency, reduce the labor intensity of the test personnel, Realize the automation and intelligence of the testing machine system.
The automatic electro-hydraulic servo pressure test function can set the loading rate according to the corresponding national standard and meet the standard loading rate control index to carry out the concrete material under the rated test force of the compressive test, with load, time and test curve dynamic display and timely control function and maximum test force maintenance function.
2. Specification:
Model
HL-CTM-600A
HL-CTM-1000A
HL-CTM-2000A
HL-CTM-3000A
Load capacity(kN)
600
1000
2000
3000
Test Accuracy
Class 0.5
Host Overall dimensions (Lx W x H)
650×500×1550;
Control cabinet (Lx W x H)
1200×680×750
Maximum vertical clearance of platens
320mm±3mm
Size of lower platen (Diameter*Thick)
Φ300 mm
Size of upper platen(Diameter*Thick)
Φ320 mm
Maximum stroke of the piston
120mm
Maximum speed of piston
30mm/min
Loading speed
20-50psi/s 0.14-0.34MPa/s
Noise
<62dB
Height of distance pieces:
Φ150×300mm / 150×150×150mm / 200×200×200m / preset
Power supply: 3kW; three phase 380V + G 50Hz Custom power input available
