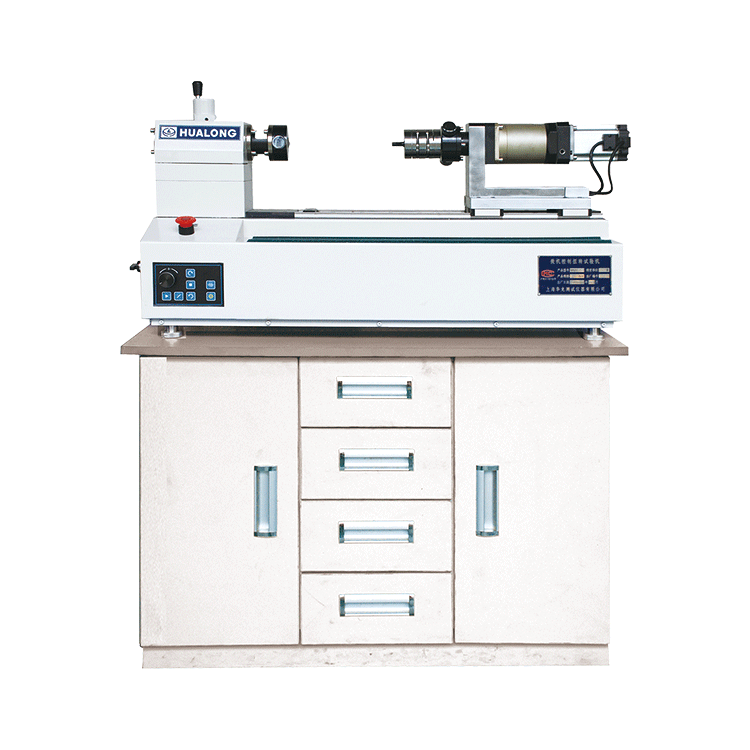

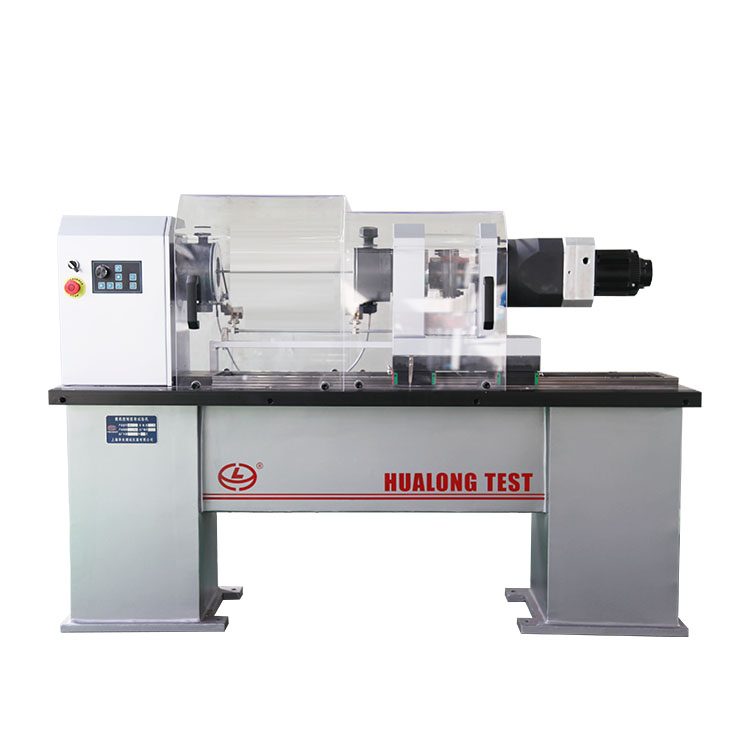

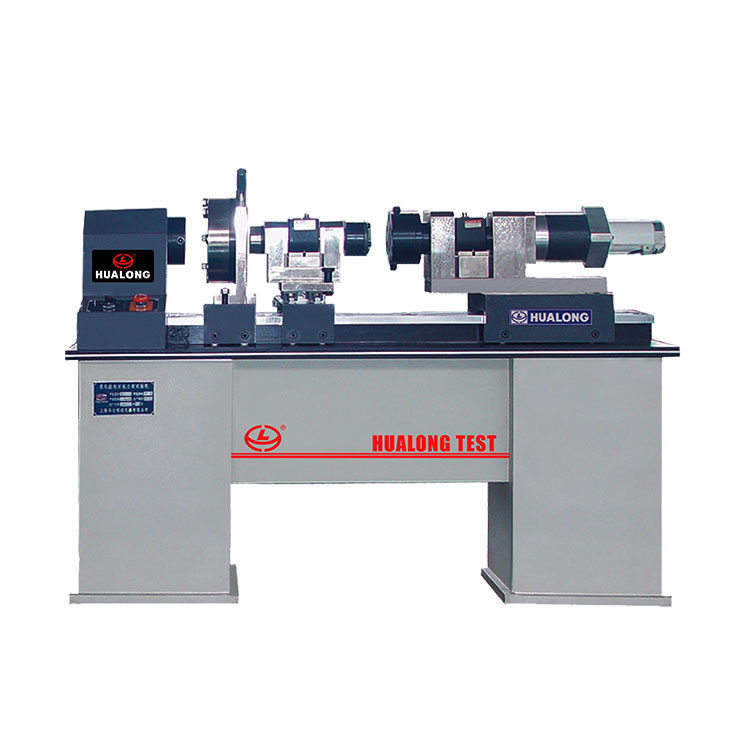

HLN-J 100/200/500/1000/2000NM Computer Control Material Torsion Testing Machine

HLN-J 100/200/500/1000/2000NM Computer Control Material Torsion Testing Machine
HLN-J 100/200/500/1000/2000NM Computer Control Material Torsion Testing Machine
HLN-J 100/200/500/1000/2000NM Computer Control Material Torsion Testing Machine
HLN-J 100/200/500/1000/2000NM Computer Control Material Torsion Testing Machine
HLN-J 100/200/500/1000/2000NM Computer Control Material Torsion Testing Machine
HLN-J 100/200/500/1000/2000NM Computer Control Material Torsion Testing Machine
HLN-J 100/200/500/1000/2000NM Computer Control Material Torsion Testing Machine
HLN-J 100/200/500/1000/2000NM Computer Control Material Torsion Testing Machine
HLN-J 100/200/500/1000/2000NM Computer Control Material Torsion Testing Machine


Application:

HLNJSeries Computer Controlled Torsion Testing Machine or Twist Testing Machine are used to determine the torsionalproperties of various components – from fasteners to biomedical devices.


Standards:

ASTM E143: Standard Test Method forShear Modulus at Room Temperature ASTM F543, ISO 6475: Implants for surgery-Metal bone screws.


Specification:

Model HLN100JS HLN100JW HLN200JS HLN200JW HLN500JS HLN500JW HLN1000JS HLN1000JW HLN2000JS HLN2000JW
Measuring range (Nm) 100 200 500 1000 2000
Torque resolution 1/500000
Relative error of torque ±1%/±0.5%
Torsion speed 0.5-20N. m/sec
Angle resolution 0.0001°
Twist angle accuracy ±1% (indicating)
Twist speed 0-25°/sec
Measuring range of twist angle 0°~10000°
Relative error of torsion angle ±1%
Clearance between grips(mm) 350 500 550 550 550
Max specimen dimension 0.02%-2% full range/s
