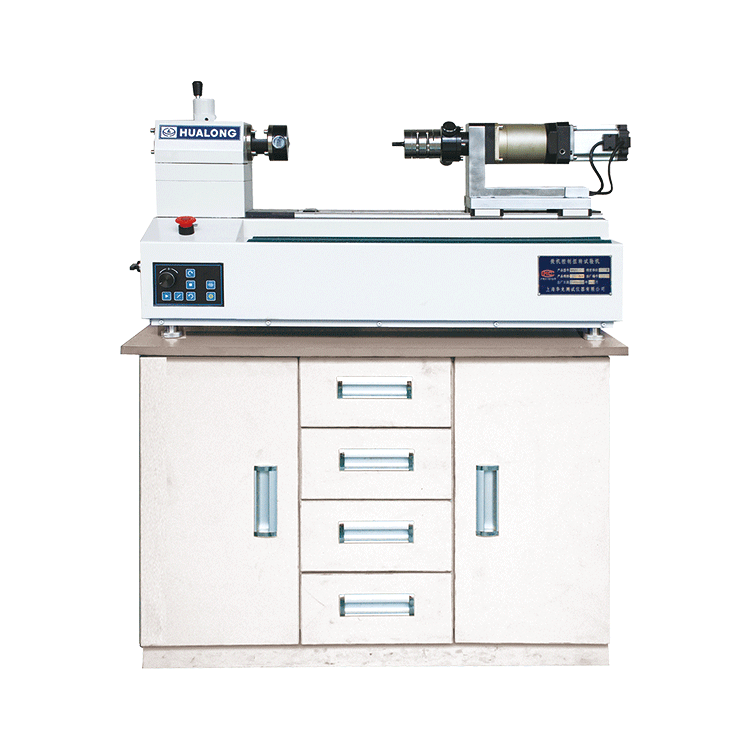

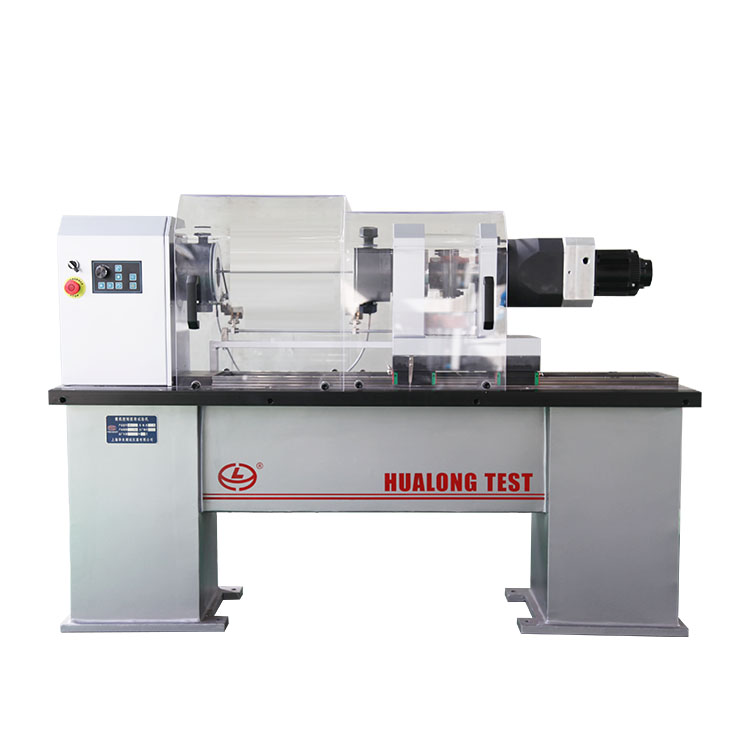

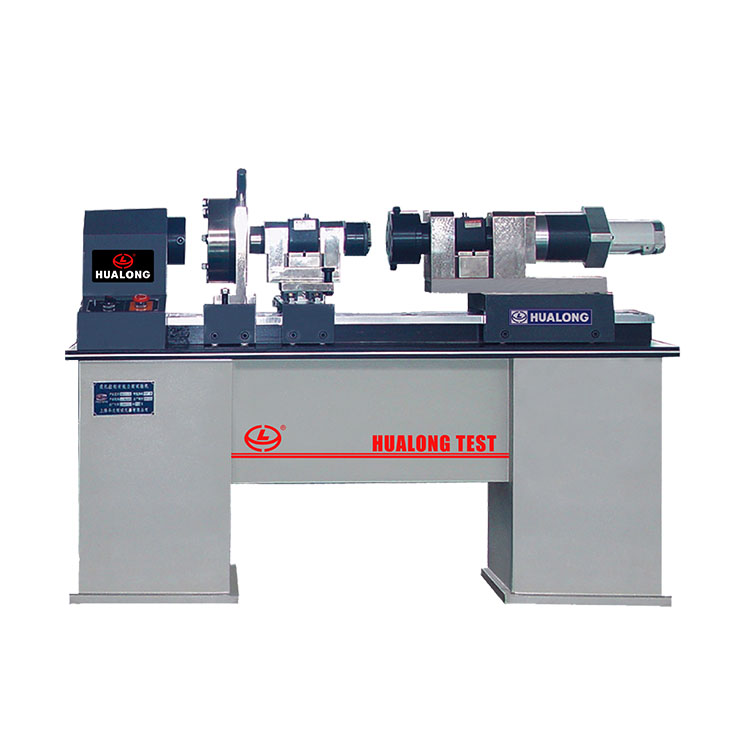

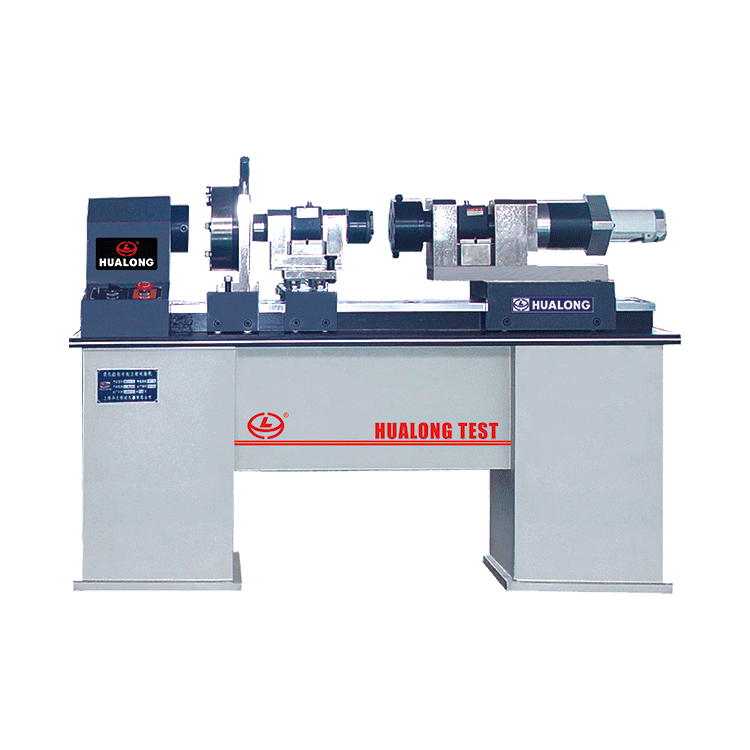

HLNJSeries Computer Controlled Torsion Testing Machine or Twist Testing Machine are used to determine the torsionalproperties of various components – from fasteners to biomedical devices.
ASTM E143: Standard Test Method forShear Modulus at Room Temperature ASTM F543, ISO 6475: Implants for surgery-Metal bone screws
|Model||HLN100JS HLN100JW||HLN200JS HLN200JW||HLN500JS HLN500JW||HLN1000JS HLN1000JW||HLN2000JS HLN2000JW|
|Measuring range (Nm)||100||200||500||1000||2000|
|Relative error of torque||±1%/±0.5%|
|Torsion speed||0.5-20N. m/sec|
|Twist angle accuracy||±1% (indicating)|
|Measuring range of twist angle||0°~10000°|
|Relative error of torsion angle||±1%|
|Clearance between grips(mm)||350||500||550||550||550|
|Max specimen dimension||0.02%-2% full range/s|
