Tweezer Grips with Movable and Rigid Fixation (0.1 KN)

Tweezer Grips with Movable and Rigid Fixation (0.1 KN)
Tweezer Grips with Movable and Rigid Fixation (0.1 KN)
Tweezer Grips with Movable and Rigid Fixation (0.1 KN)
Tweezer Grips with Movable and Rigid Fixation (0.1 KN)
Tweezer Grips with Movable and Rigid Fixation (0.1 KN)
Tweezer Grips with Movable and Rigid Fixation (0.1 KN)
Tweezer Grips with Movable and Rigid Fixation (0.1 KN)
Tweezer Grips with Movable and Rigid Fixation (0.1 KN)
Tweezer Grips with Movable and Rigid Fixation (0.1 KN)
1. Introduction:
Used for testing the tensile strength, tensile strength of small size samples that do not require high load, such as electronic parts, with a load force of up to 0.1 kN.

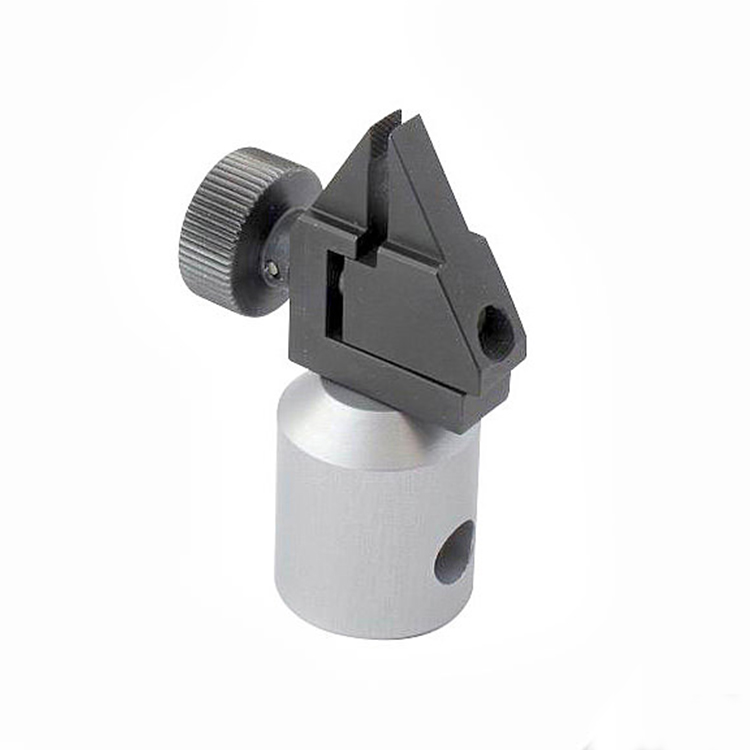

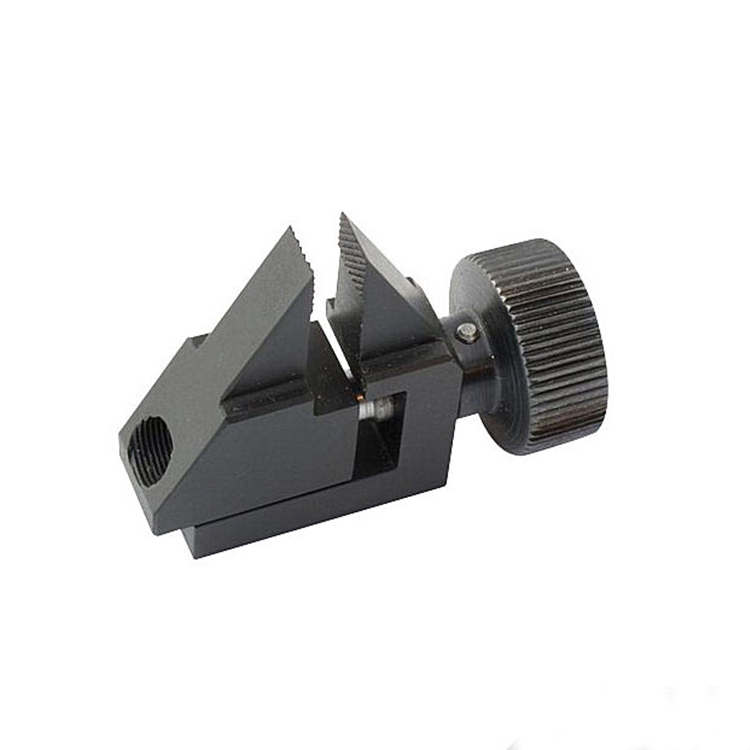

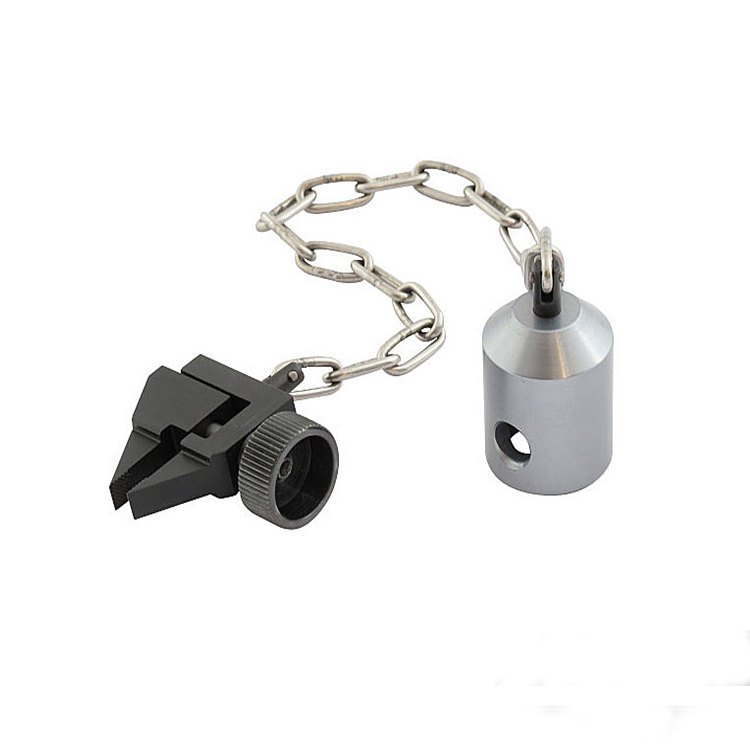

The design of the grip PP-0.1-Ts provides for a chain for flexible fastening to the adapter, the grip PP-0.1 has a rigid fixation, PP-0.1-A has a rigid fixation and an adapter.
Clamping jaws may have a smooth or serrated surface.

2. Specification:

Options

0.1-Ts

0.1, 0.1-A

Max. load, kN

0.1

Opening size, mm

0 to 4

0 to 3

Clamping jaw size, mm



6×5

6×5

10x5

10x5

15×5

15x10

Chain length*, mm

250

150

-

Capture length, mm

35

Mounting hole*, mm

15.9

Weight, kg

0.095

Note: * - other sizes are possible according to the customer's specifications

:
