Pincer Grips with Movable and Grid Fixation (0.02 KN)

1. Introduction:
Used for testing the tensile strength, tensile strength of small specimens, parts made of non-hard materials that do not require high load, such as paper, plastics, rubber, threads, etc. with load force up to 0.02 kN.

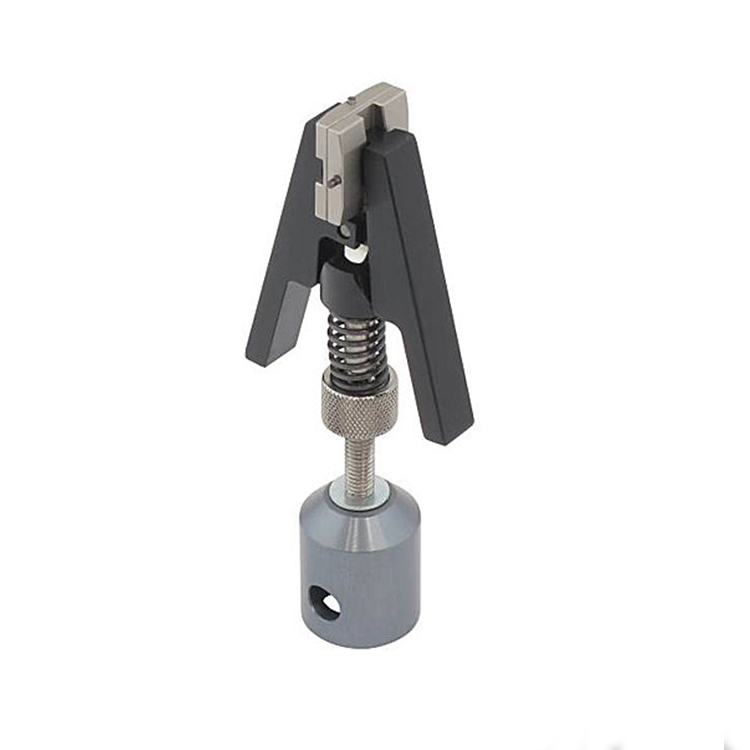

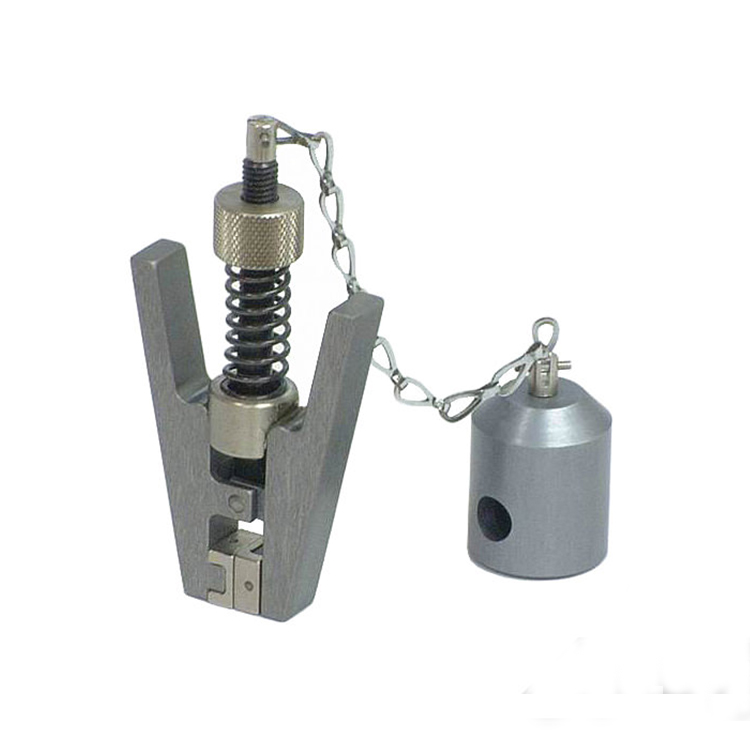

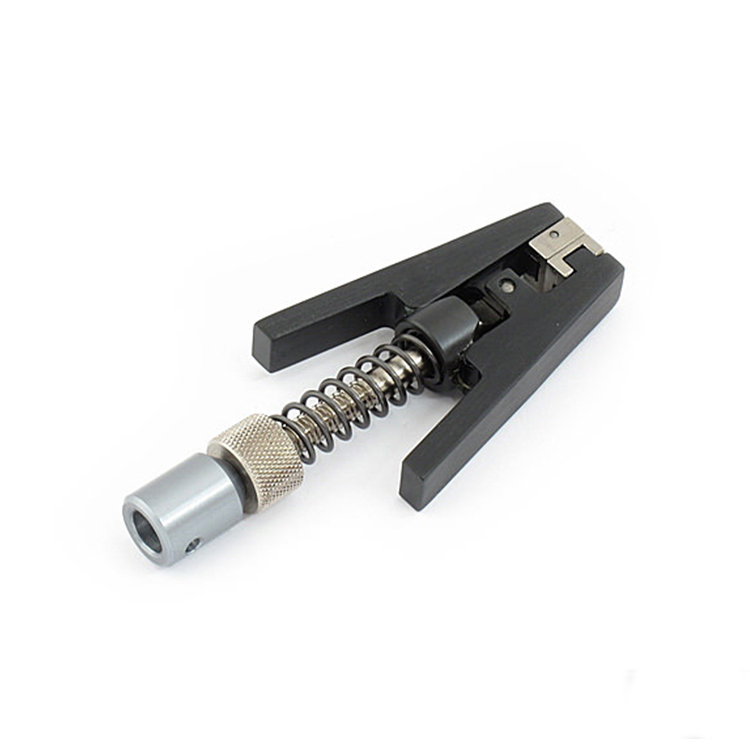

The design of the grip PP-0.02-Ts provides for a chain for flexible attachment to the adapter, the grip PP-0.02 has a rigid fixation - it is attached directly to the adapter.
Clamping jaws can be smooth or serrated according to specifications.

2. Specification:

Options	0.02-Ts	0.02	0.02
Clamping jaw surface	Smooth (G)		Gear (Z)
Max. load, kN	0.02
Opening size, mm	0 to 3.4
Clamping jaw size, mm	10x10		20×20
Temperature range, ℃	From 0 to 180
Chain length, mm	250	-	-
Capture length, mm	81.5
Weight, kg	0.098
