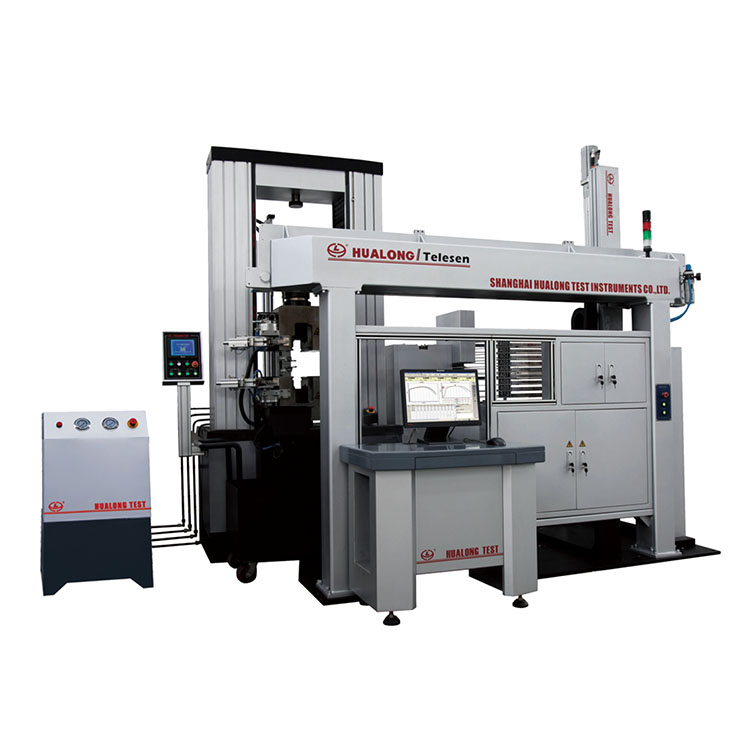

100KN/300KN/600KN Computer Control Full Auto Electronic Tensile Testing Machine

Application

HLE-200/300/500/600-A microcomputer controlled automatic tensile testing machine consists of electronic universal testing machine, double-sided push-pull hydraulic automatic stretching fixture, flat push clamp servo oil source, digital longitudinal automatic extensometer, and extensometer’s program-controlled automatic advance and retreatdevice, front gantry type three-dimensional automatic loading specimen main robot device, six-side 60-station servo control rotary specimen rack device, specimen automatic centering finishing device, specimen automatic measuring device, follow-up automatic unloading Double robot device, automatic specimen sorting device, piano main console, digital full-closed multi-channel controller, computer and software system, measurement and control system, PLC manual control box, gas island control system, compressed air boost The system consists of a voltage regulation system, an electric drive system, safety protection and automatic shutdown alarm.

Test Standards:

GB/T 228,JIS Z 2241,ISO 6892,ASTM E8,DIN,BS,EN, ect.

Specifications:

Model	HLE-100-A	HLE-300-A	HLE-600-A
Max. load	100kN	300kN	600kN
Testing level	0.5 Class
Driving way	Servo control, electric servo, medium control gas island
Operation type	Automatic / manual stretching atroom temperature
Max. distance between tensile clamp	≥550 mm
Effective test width	≥620mm
Test speed	0.001-200mm/min stepless setting
Speed accuracy	±0.5%
Speed control mode	displacement, load, stress, strain can be arbitrarily selected and switched within the stretching phase.
Power supply	Three-phase 10kW
