200/300/500/600kN Robot Robotic Automatic Tensile Testing Systems

1. Introduction:

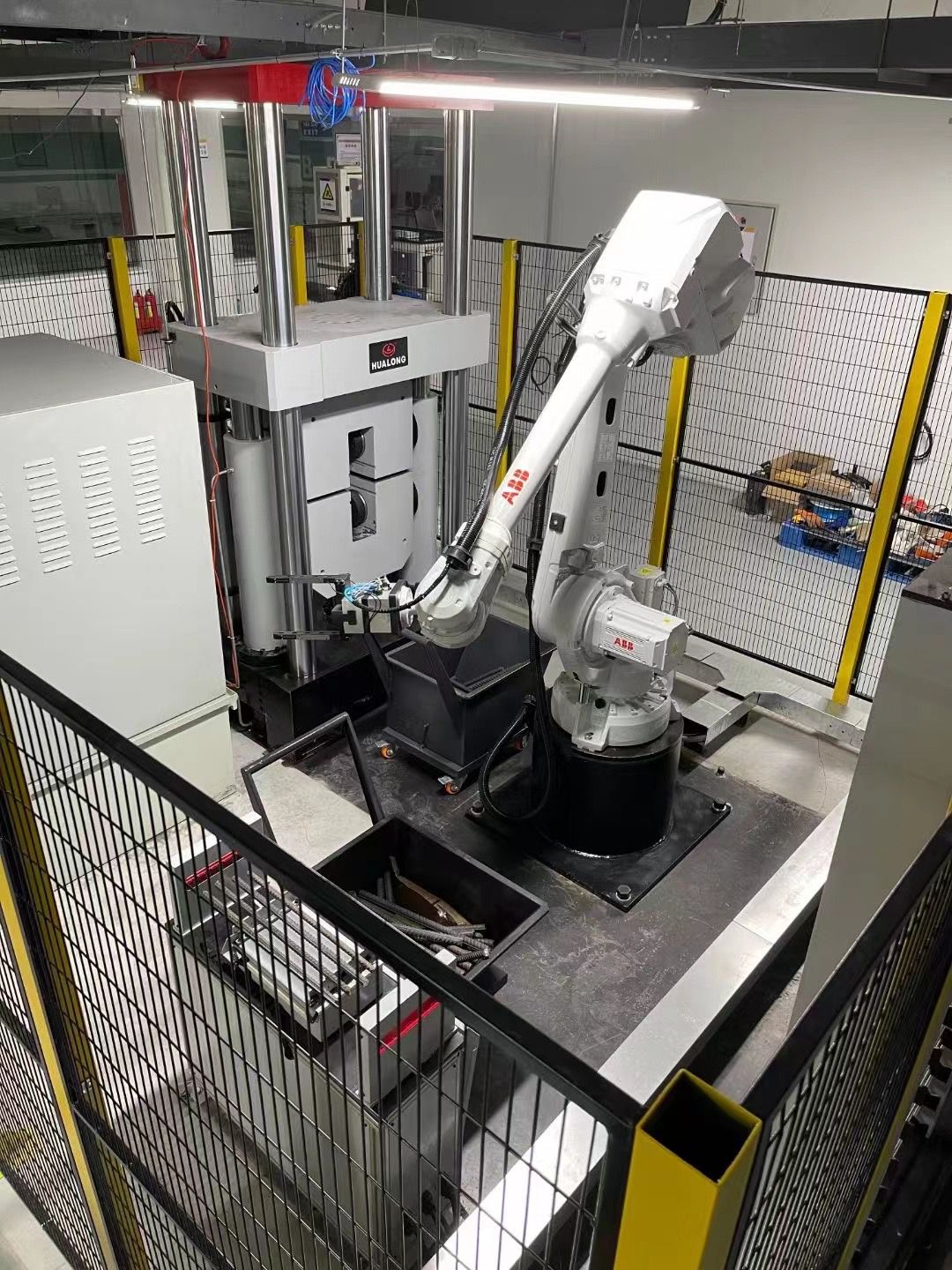

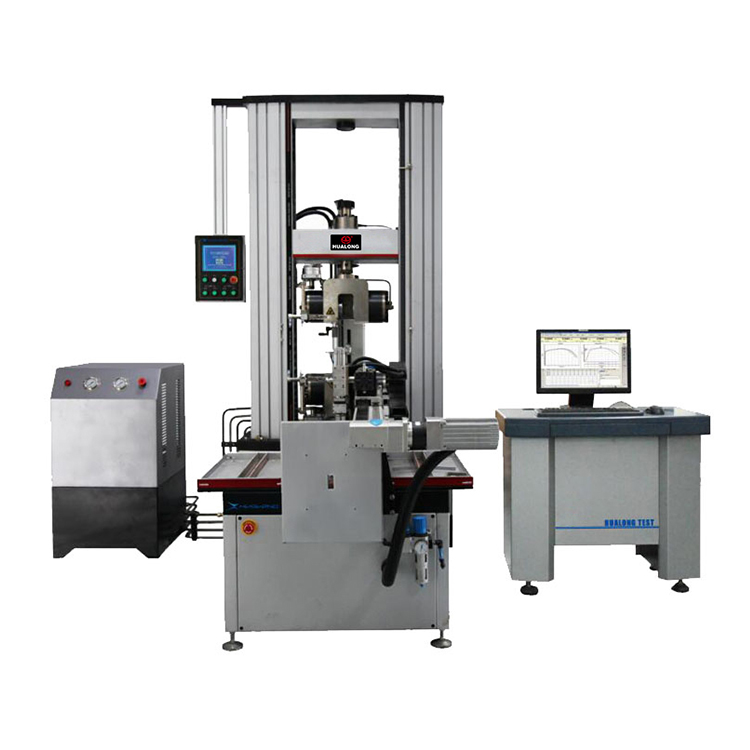

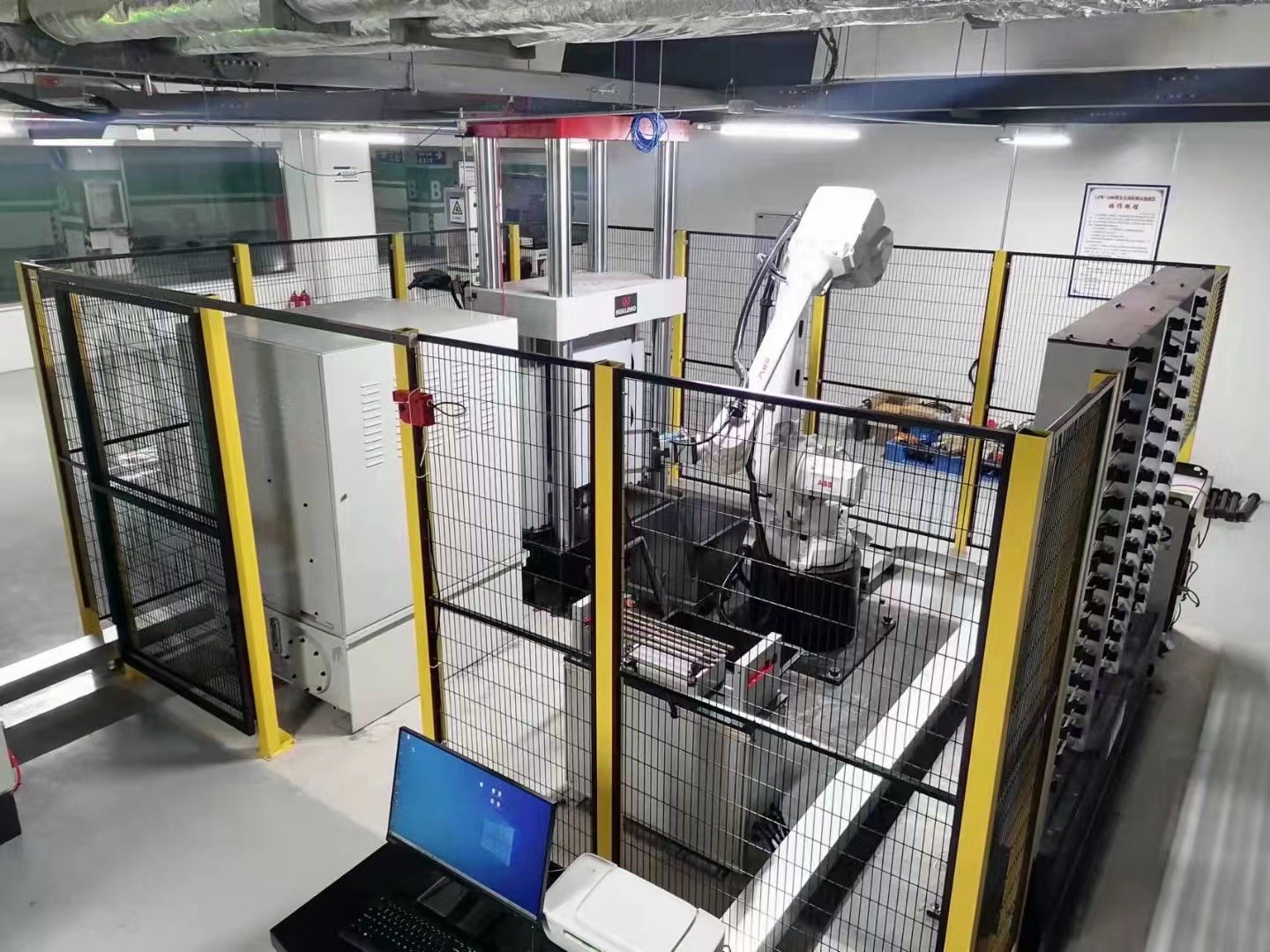

The robotic testing system can be attached to materials testing machines from 200 to 600 kN.
The integrated magazine typically holds 24 or 40 specimens.
Specimens up to 5 kg in weight can be tested.
Manual tests can be performed whenever required—the specimen feeder simply swings out of the way for access.
An industrial controller with autoEdition3 automation software controls the system.

2. Specification:

Model		HLE-200-A	HLE-250-A	HLE-300-A	HLE-500-A	HLE-600-A
Capacity	kN	200	250	300	500	600
Calibration standard	-	0.5 according to ISO 7500-1 - Meets ASTM E-4
Accuracy grade	%	0.5 of reading
Testing load accuracy	%
Deformation accuracy	%
Displacement accuracy	%
Force range	FS	0.2%-100%
Force resolution	FS	Capacity/500, 000 (fully auto scaling of single measurement range)
Force accuracy	%	0.5 of reading
