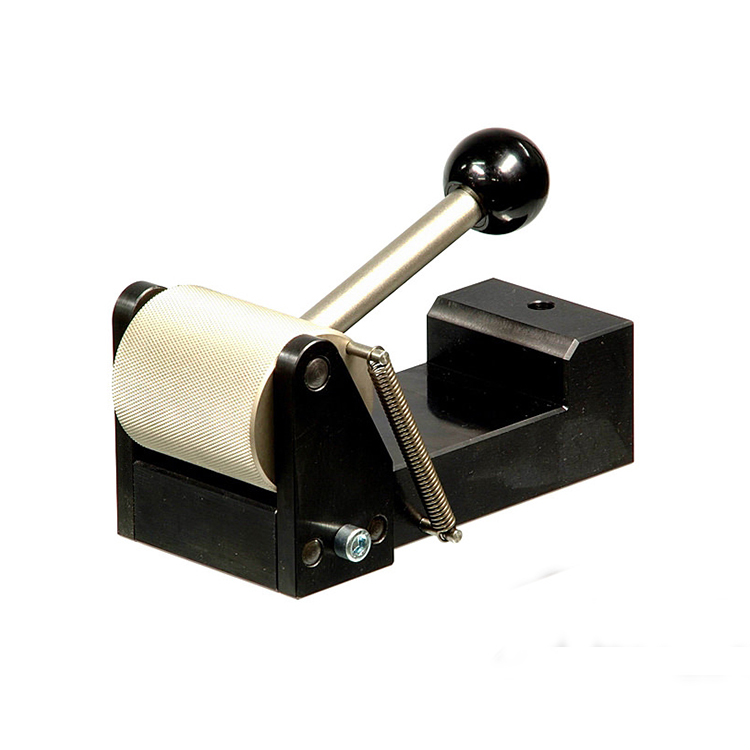

Self-clamping Grips with Eccentric (1; 5; 10 KN)

1. Introduction:
It is used primarily for testing highly elastic, soft, elastic samples: plastics and elastomers, films, rubber, etc. with a tensile force of 1, 5, 10 kN.

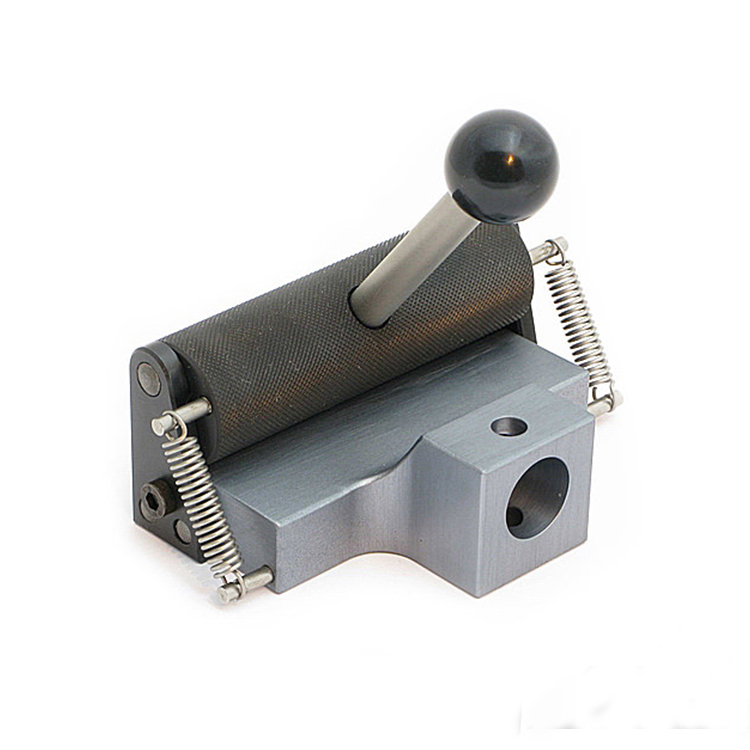

Opening and closing is carried out by means of a lever. Spring pretension keeps the gripper open for specimen placement. The surface of the eccentric is serrated.

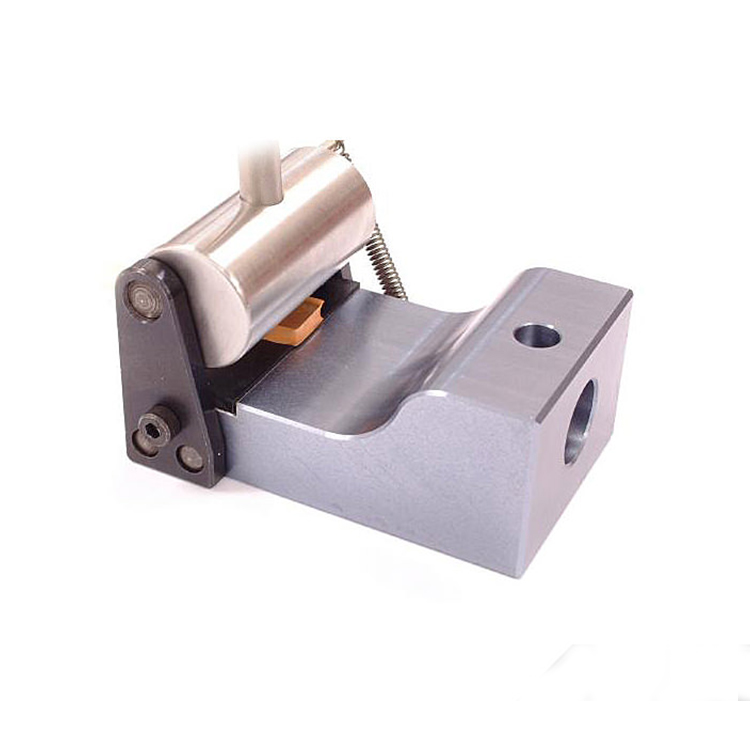

Maud. PE-1-R has a rubberized base plate, the surface of the eccentric is smooth.

2. Specification:

Options	HL-1-S	HL-1-R-S	HL-5-S	HL-10-S
Maximum tensile force, kN	one		5	ten
Roller width, mm	50		50	60
Opening size, mm	0-7		0-7	0-8
Roller diameter, mm	25		30	50
roller surface	Dentate
Capture dimensions (lxwxh), mm	80x68x76.2 (height including lever)		96x69.8x39.5 (height without lever)	150x90x126 (height including lever)
Mounting hole diameter*, mm	15.9 (5/8")
Weight, kg	0.5		0.7	3.35
