Vise Grips (50KN)

1. Introduction:

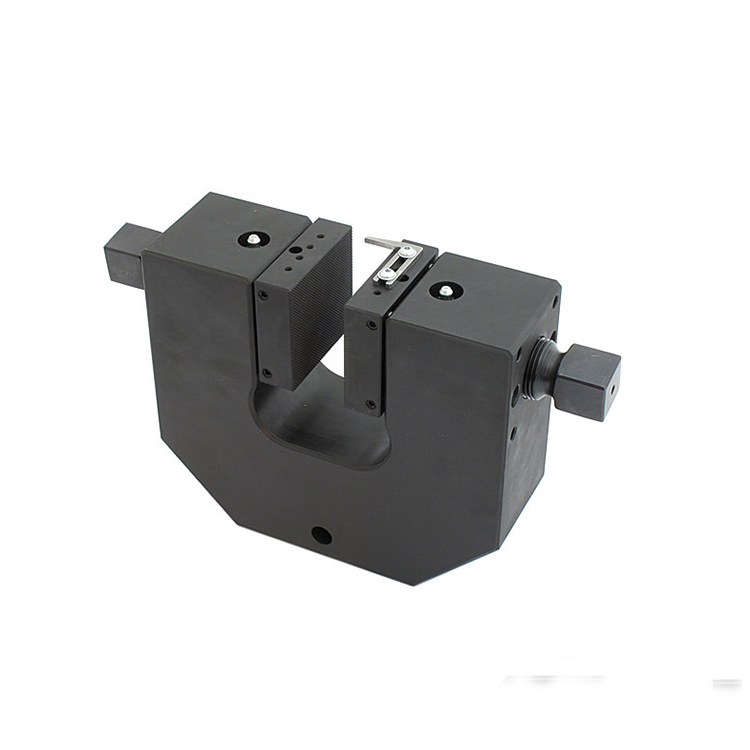

The universal vise grip is used for testing specimens with a maximum tensile force of 50 kN.
The samples are clamped manually (it is recommended to use a wrench). The clamping jaws have a stop for centering the sample.
Clamping jaw surface options:
smooth (G);
with rubber coating 1mm (P);
serrated pyramidal (Z);
v-shaped (V);
wavy (B) for elastic specimens.

2. Specification:

Options	G	R	W	B	V
Clamping jaw surface	Smooth	Rubber	Dentate	Undulating	V-shaped
Max. tensile load, kN	50
Max. compression load, kN	100-150
Clamping jaw size / opening size, mm	60×66/ 0-30	60×66/ 0-28	60×66/ 0-30	60×66/ 0-30	60×66/ Ø(5-30)

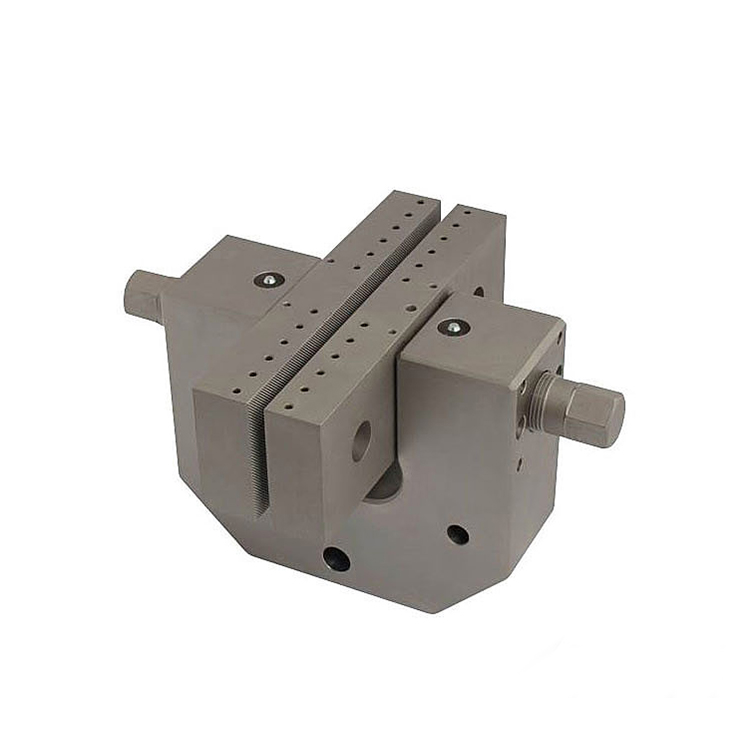

Clamping jaw size / opening size, mm	70×210/ 0-10	-	70×210/0-10	70×210/ 0-10	-
Overall dimensions, mm	280×165×66
