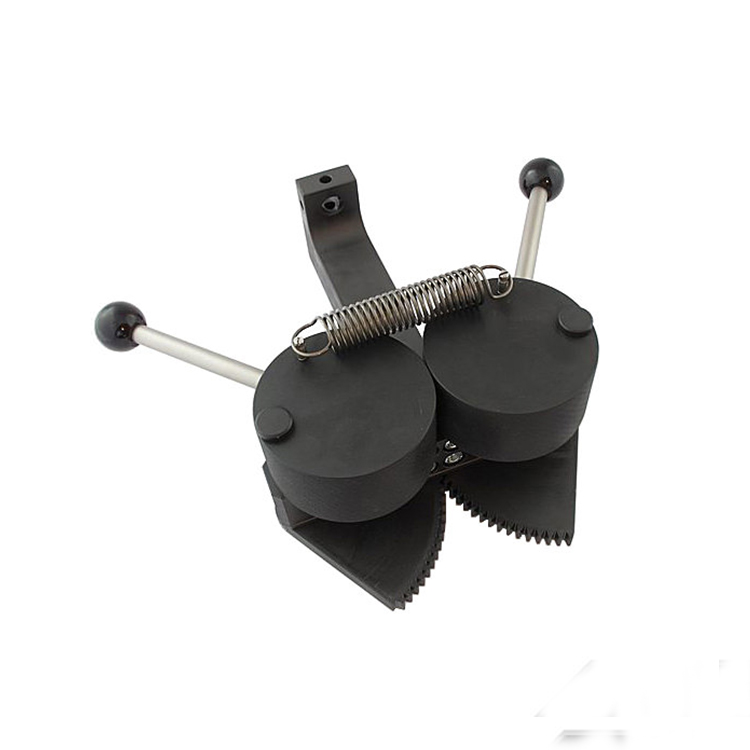

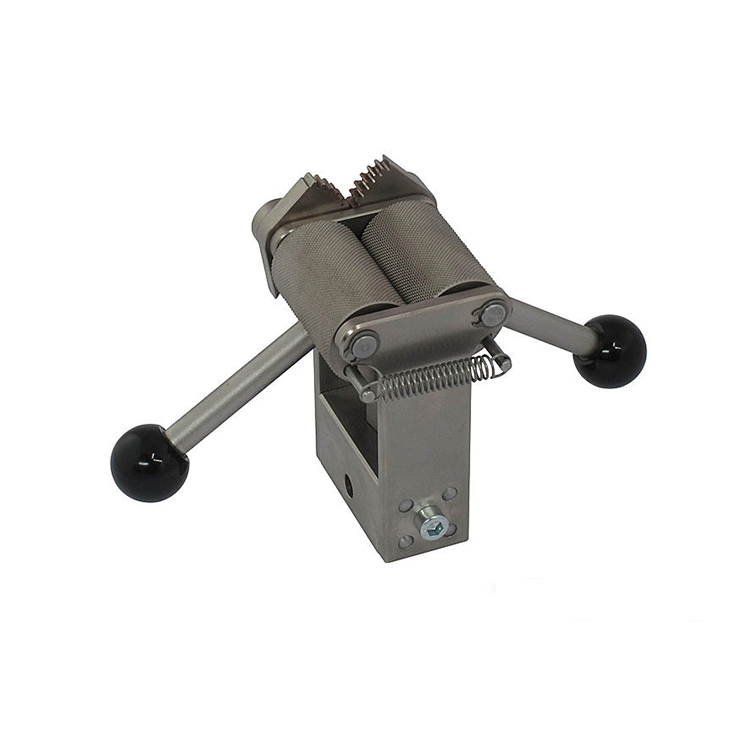

Self-clamping Grips with Two Eccentrics (5 KN)

1. Introduction:
It is used primarily for testing highly elastic, soft, elastic samples: plastics and elastomers, films, rubber, etc. with a tensile force of 5 kN.
Opening and closing is done manually, spring preload keeps the gripper open for specimen placement. The design of the gripper allows for automatic clamping as the tensile force increases – an advantage for specimens that narrow during testing.

2. Specification:

Options	5/15-С	5/40-S
Maximum tensile force, kN	5
Roller diameter, mm	30	-
Roller width, mm	50	50
Opening of clamps, mm	0-15	0-40
Max. dimensions, mm	78x100x226	250x485.4
Mounting hole diameter*, mm	15.9, 20
Weight, kg	1.4	2
roller surface	Dentate	Smooth
