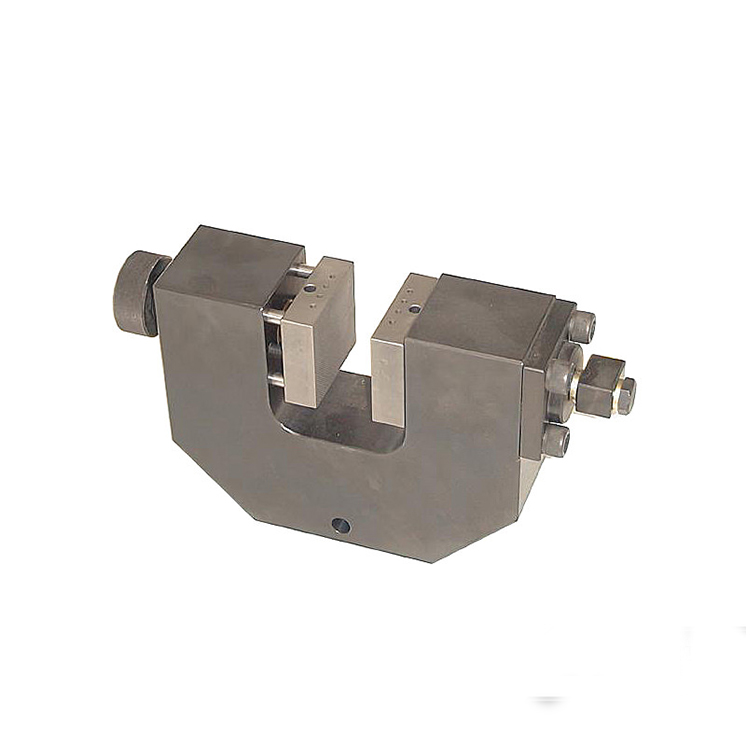

Hydraulic Vise Grios (60KN)

1. Introduction:
Hydraulic single-cylinder universal gripper for testing materials, with a maximum clamping force of 60 kN.
Cylinder Ø 50 mm, spring return, maximum stroke 15 mm.
Clamping jaws have different types of surfaces:
smooth (G);
serrated pyramidal (Z);
V-shaped (V), for all kinds of round specimens;
wavy (B).

2. Specification:

Indicators	G	W	V	AT
Clamping jaw surface	Smooth	Dentate	V-shaped	Undulating
Max. compression load, kN	60
Max. pressure, MPa	31.5
Cylinder diameter, mm	50
Max. stroke, mm	15
Hydraulic connection	1/4"
Opening size, mm	0-30	0-30	Ø 8-30	0-20
Opening size, mm	0-10	-	-	0-10
Jaw size, mm	60x66	60x66	60	60x66
	70×210	25x100	-	-
Dimensions. mm	300×170×66
