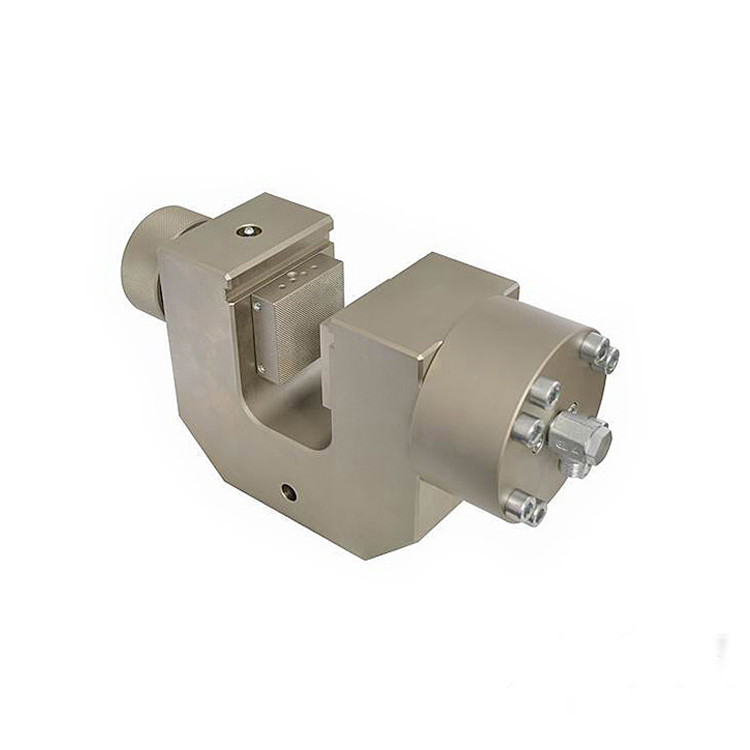

Hydraulic Grab Grips (170KN)
Universal hydraulic gripper for testing materials, with a maximum clamping force of 170 kN.
Clamping jaws have different types of surfaces:
smooth (G);
serrated pyramidal (Z);
V-shaped (V), for all kinds of round specimens;
wavy (B).
2. Specification:
|
Indicators |
G |
W |
V |
AT |
|
Clamping jaw surface |
Smooth |
Dentate |
V-shaped |
Undulating |
|
Max. compression load, kN |
170 |
|||
|
Max. pressure, MPa |
35 |
|||
|
Opening size / sample diameter, mm |
0-32 |
0-32 |
Ø 8-30 |
0-32 |
|
Jaw size, mm |
60x66 |
60x66 |
60 |
60x66 |
|
Landing hole, mm |
Ø 40 |
|||
|
Dimensions. mm |
339×174×98 |
|||
