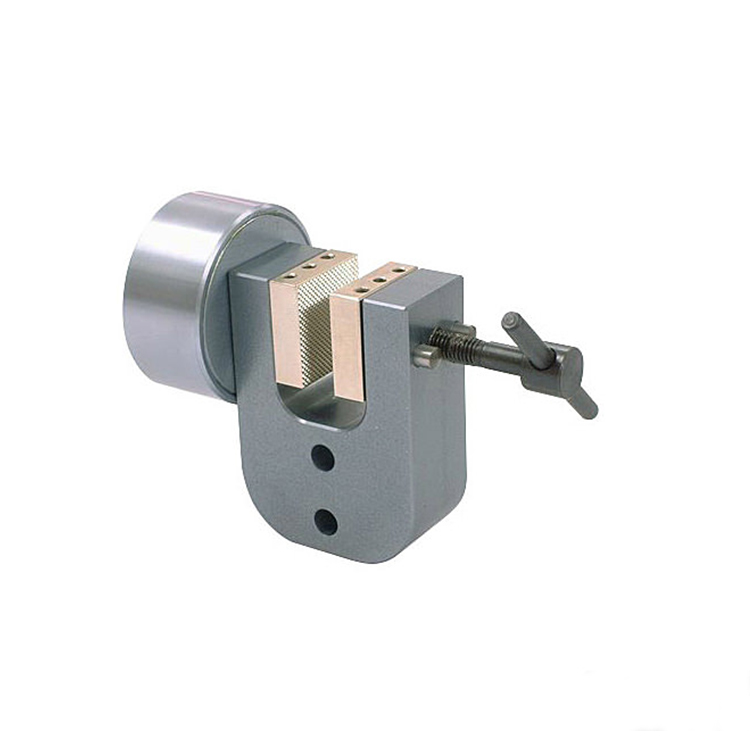

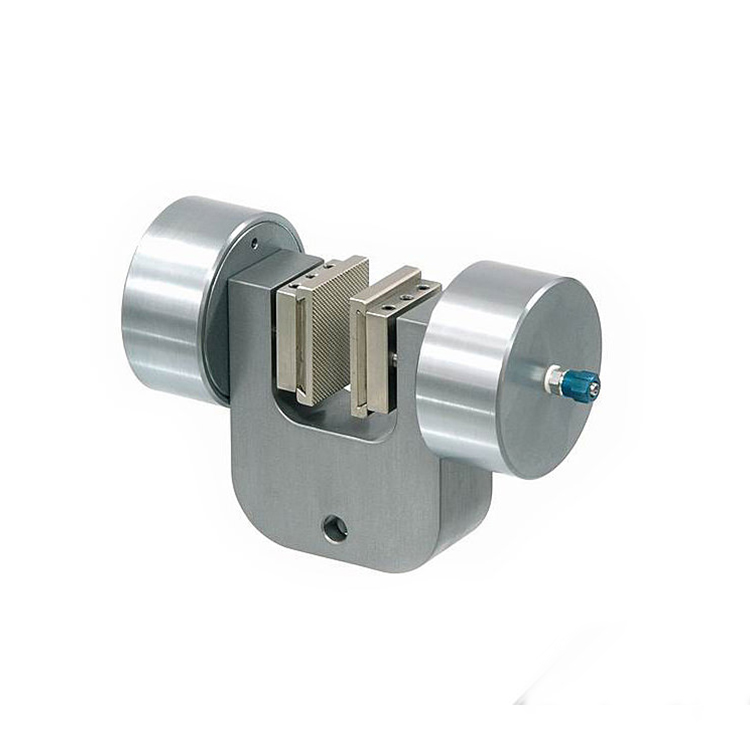

Pnewumatic Grips One and Two Cylinder
1. Introduction:
The universal pneumatic gripper is used for testing specimens made of plastics, paper, textiles, aluminium, brass, metal foil and other materials with a tensile force of up to 1.2 kN.
The specimens are clamped pneumatically. Stem travel 0 to 15 mm (can be adjusted from 10 to 25 mm)
- with rubber coating (P);
- jagged pyramidal (Z);
- v-shaped, v-shaped corrugated (V, V1);
- wavy (B).
Clamping jaws are provided, consisting of a base and replaceable inserts - liners (B):
- smooth (SH);
- with rubber coating (VR);
- dentate pyramidal (VZ);
The universal pneumatic gripper is used for testing specimens made of plastics, paper, textiles, aluminium, brass, metal foil and other materials with a tensile force of up to 1.2 kN.
The specimens are clamped pneumatically. Stem travel 0 to 15 mm (can be adjusted from 10 to 25 mm)
2.Clamping jaw surface options:
- smooth (G);- with rubber coating (P);
- jagged pyramidal (Z);
- v-shaped, v-shaped corrugated (V, V1);
- wavy (B).
Clamping jaws are provided, consisting of a base and replaceable inserts - liners (B):
- smooth (SH);
- with rubber coating (VR);
- dentate pyramidal (VZ);
