Roller Grips 35 MM

1. Introduction:

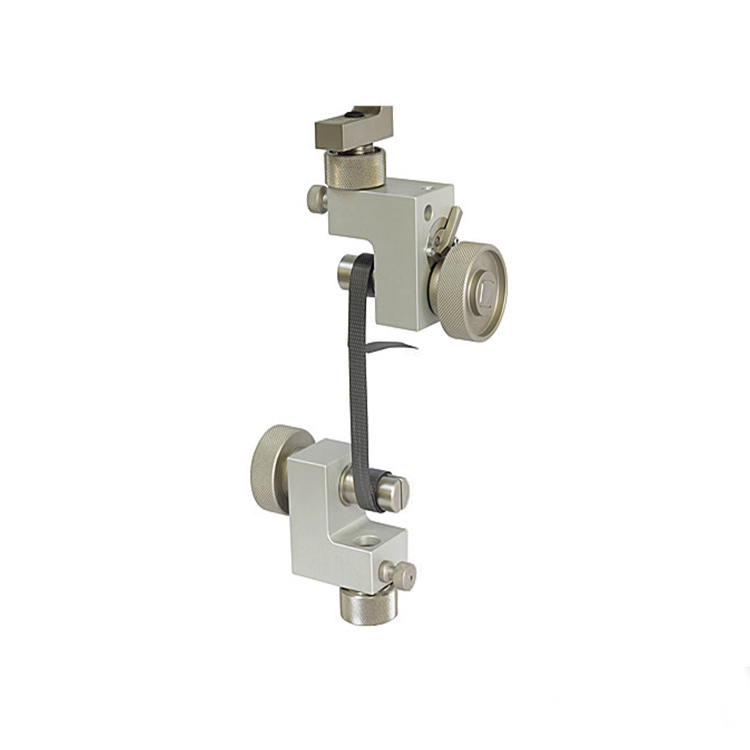

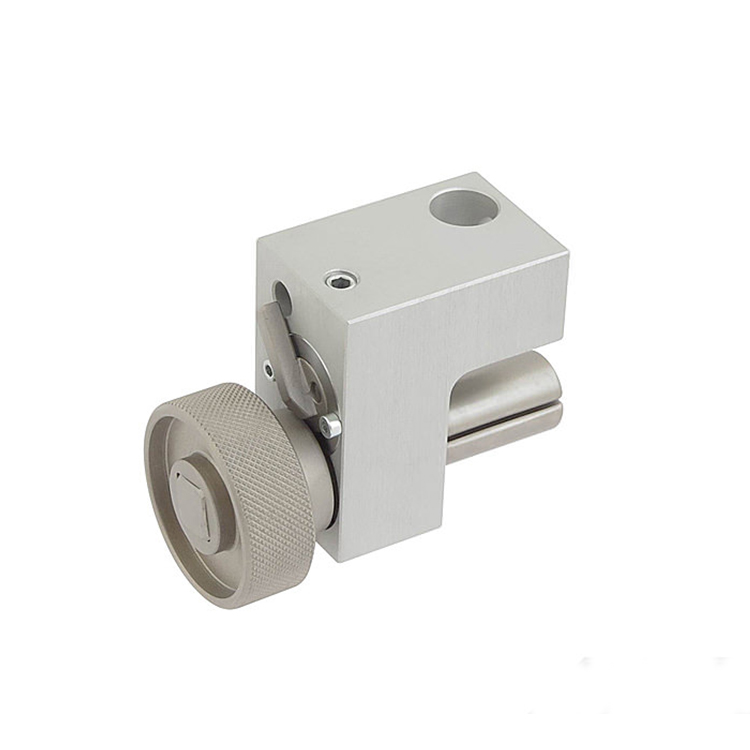

The roller-type gripper is designed for fixing and holding narrow nylon tapes, plaits, ropes made of textiles, rubber, polymers and other materials with a width of not more than 35 mm during tensile tests.
The grip is distinguished by a convenient sample holder from unwinding during testing.
GOST 16218.9 - elastic textile products: ribbons, braid, cord, etc.

2. Specification:

Sample width, mm	No more than 35
Mounting hole diameter*, mm	15.9
Diameter of clamping jaws (rollers), mm	20
Overall dimensions, mm	96.5×75
Note: * - other sizes are possible according to the customer's specifications
