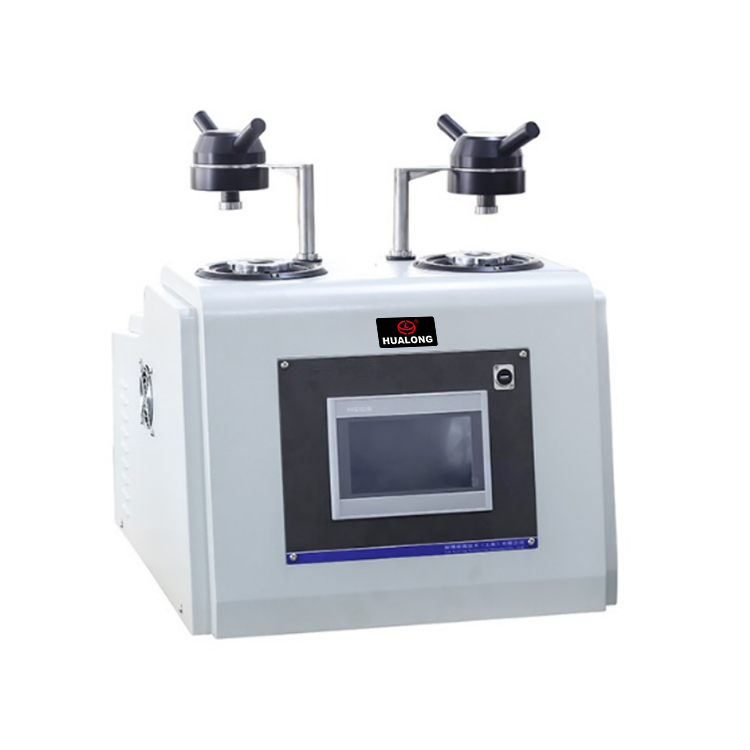

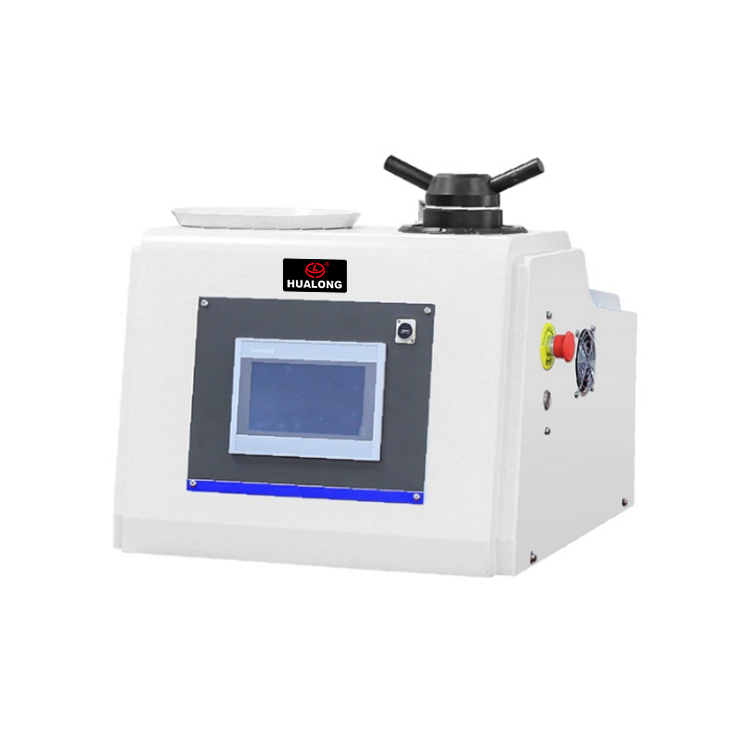

HLM-3000 & HLM-3000D Single Cylinder & Dual Cylinder Automatic Mounting Press

HLM-3000 & HLM-3000D  Single Cylinder & Dual Cylinder  Automatic Mounting Press
HLM-3000 & HLM-3000D  Single Cylinder & Dual Cylinder  Automatic Mounting Press
HLM-3000 & HLM-3000D  Single Cylinder & Dual Cylinder  Automatic Mounting Press
HLM-3000 & HLM-3000D  Single Cylinder & Dual Cylinder  Automatic Mounting Press
HLM-3000 & HLM-3000D  Single Cylinder & Dual Cylinder  Automatic Mounting Press
HLM-3000 & HLM-3000D  Single Cylinder & Dual Cylinder  Automatic Mounting Press

1.Product features:

-The full automatic mounting press has: HLM-3000 single cylinder and HLM-3000D dual cylinder optional.

-Mount four samples simultaneously (dual cylinder) or mount two samples simultaneously (single cylinder)

-Man - machine interface and PLC control, the system is stable and reliable.

-Built-in storage of 99 sets of mounting process (to save the mounting materials and other parameters),

there is always a process to meet the specific requirements.

-Start the sample making process automatically with one key.

-Efficient heating/cooling system maximizes heat transfer and cooling for fast cycling.

-The electrohydraulic system can load pressure safely, the pressure is stable and reliable.

-Simple and effective top sealing mechanism, no manual assistance is required when ejecting samples.

-Rotating top sealing mechanism, automatic ejecting, reaching the highest position, automatic stop, take off the sample.

-USB interface, Mounting process parameters through the U disk import and export.


2. Technical parameters

Item

HLM - 3000

HLM – 3000D

The mold diameter

φ30mm (optional 25mm/ 40mm/ 50mm)

Customizable: 1 in/1.25 in/1.5 in

Number of mold sets (including double sample separator)

1 set

2 sets

Mounting application

Programmable Mounting process library, can store 99 sets of mounting process

Program input/output

U disk

Heater Power

2000W

4000W

Maximum number

of inserts

2

4

Temperature range

0 ~ 200℃ adjustable

Time range

0 ~ 30 min

Pressure range

0 to 6 MPA is adjustable

Total mounting time

6 min φ30mm sample);About 8 minutes (φ50mm sample)

Pressure mode

Automatic (electro-hydraulic system)

Cooling way

Automatic water cooling (optional chiller), controlled

by solenoid valve

Operation and

display mode

7 "touch screen operation and display

Total power

2200W

4200W

Power supply

AC220V 50 hz

Cylinder height

135mm, effective height 60mm

Overall dimensions

680 * 570 * 530 mm

Weight

90 kg

100 kg

other

Sample placement tray

NONE
