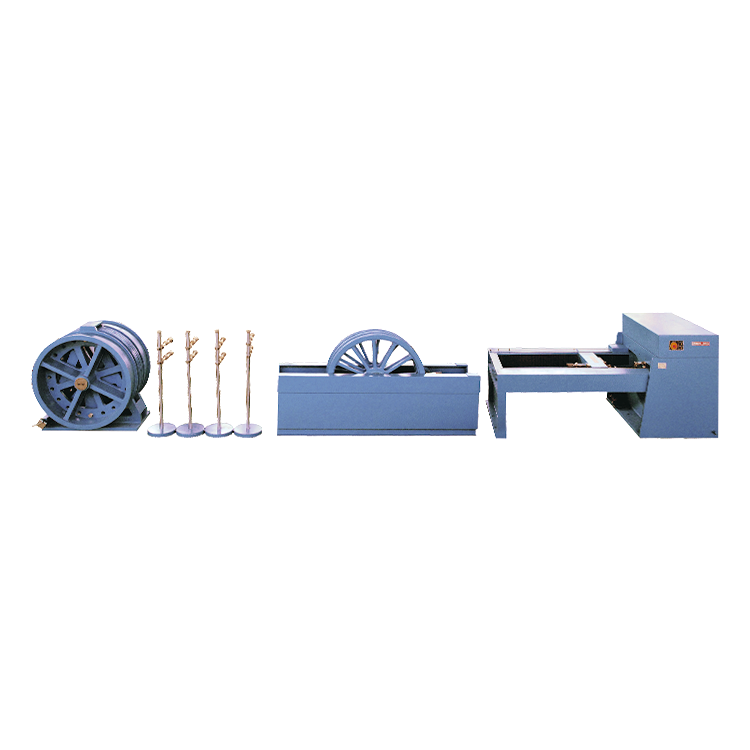

IEC-60794-1-2 Method E1&E3 GLY-50kn/100kn/200kn Series Optical Fiber Cable Tensile & Crush Testing Machine

Application:

HUALONG GLY-1000 These machines offer force, displacement or deformation closed loop testing. The load frames are rigid constructed, providing superior axial and lateral stiffness.

Standard

IEC-60794-1-2 Method E1&E3

Specifications

Load capacity:	50KN/100KN/200KN
Accuracy class:	±1%
Measuring range:	1%-100%
Crush platen:	100mm×100mm，hardness:HB240～280
loading speed:	0.2～300mm/min
Deformation measuring accuracy:	±0.5%
Displacement measuring accuracy:	±0.3%
Elongation measurement:	1. gauge length：1000mm 2. Measuring resolution is better than 10μm 3. Accuracy is better than ±0.5%.
Crosshead travel:	800～1100mm
