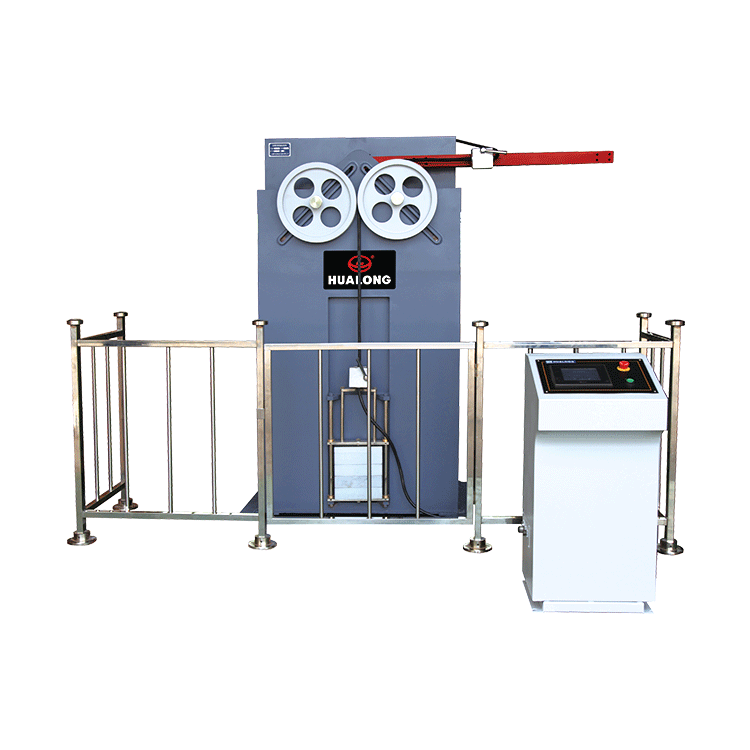

Home>>PRODUCTS >> Testing Machine >> Special Testing Machine >> Optical Cable Testing MachineHUALONG GWQ-1000 Series Optical Fiber Cable Repeated Bending Testing Machine is intended to establish the ability of a fiber optic cable to withstand repeated bending.
Standard
IEC 60794-1-2-E6
Bending angle |
±90° degree |
Max. bending cycles |
1 - 9999 |
Frequency range |
10 - 30 cycles/min |
Bending radius (mm) |
25, 50, 75, 100, 150, 500 (others upon request) |
Mass of weights for applying tension |
Weight structure 27.5kg, 3 pieces of 5kg weight increment, 1 piece of 2.5kg weight increment. |
Dimensions (L*W*H) |
|
Working frame |
3,000*720*2,500 mm |
Control console |
400*300 * 800 mm |
Power |
3-phase 4-wire, 50Hz, 1 kW. |
