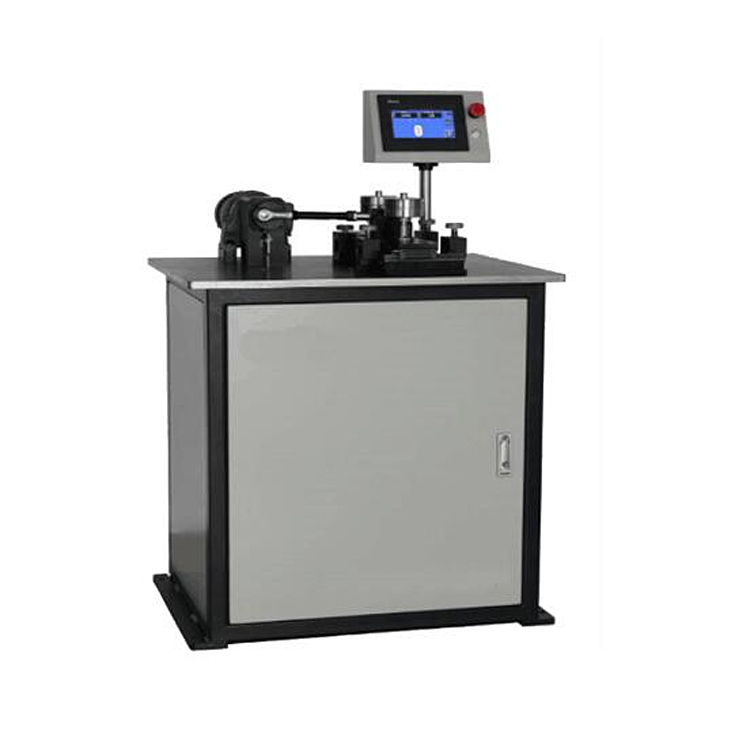

HL-GMS-100 Optical Fiber Cable Abrasion Tester

Application:

The Optical Fiber Cable Abrasion Tester is designed to determine the ability of an optical ﬁber cable sheath and markings to resist abrasion.

Standards:

• Method E2A: Abrasion Resistance of Optical Fibre Cable Sheaths
• Method E2B: Abrasion resistance of optical ﬁbre cable markings
• Method E2B 1: Suitable for rigid marking types like embossing, indenting and sintering

• Method E2B 2: Applicable to marking types other than embossing, indenting and sintering

Specification:

Technical Parameters
Model	HL-GMS-100 Series
Abrading stroke for sheath	10 mm
Abrading stroke for markings	Method 1	Method 2
Abrading stroke cycles	1 ~ 9999 times
Abrading frequency	55 ± 5 cycles/min
