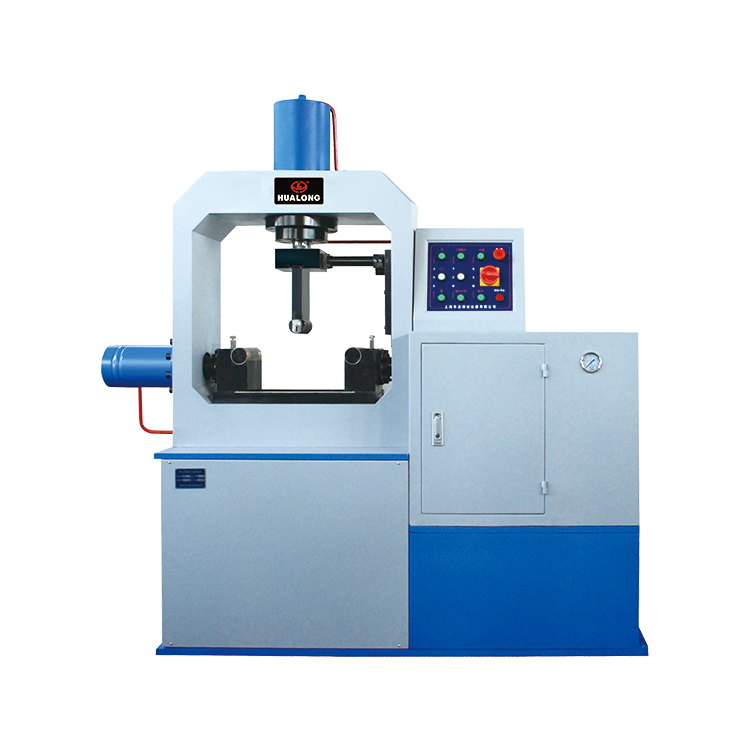

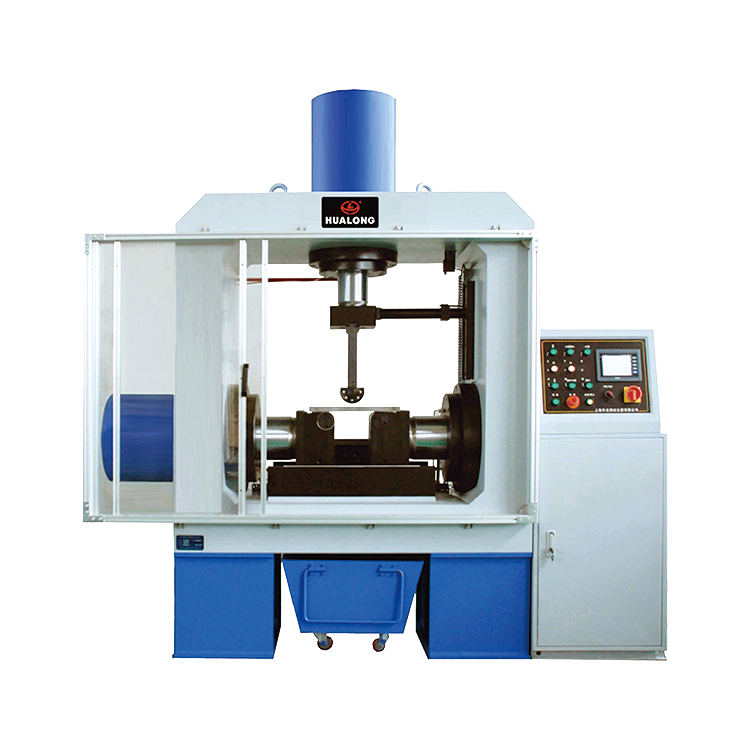

LWC series continues bend testing machine

LWC series continues bend testing machine
LWC series continues bend testing machine
LWC series continues bend testing machine
LWC series continues bend testing machine
LWC series continues bend testing machine
LWC series continues bend testing machine
LWC series continues bend testing machine
LWC series continues bend testing machine
LWC series continues bend testing machine

Standards

ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002,etc

Specification

Model

LWC-1000/2000

LWC-500/1000

Max Load

vertical cylinder

1000kn

500kn

frame levelling cylinder

2000kn

1000kn

Piston stroke

vertical cylinder

400mm

350mm

frame levelling cylinder

200mm

175mm

Displacement control speed

vertical cylinder

V1=0-400mm/min

frame levelling cylinder

V2=0-100mm/min

Piston displacement accuracy

0.1%

Roller displacement speed

80mm/min

Dimension

2370*740*2450mm

2030*700*1922mm

Weight

6500kg

3800kg
