Introduction

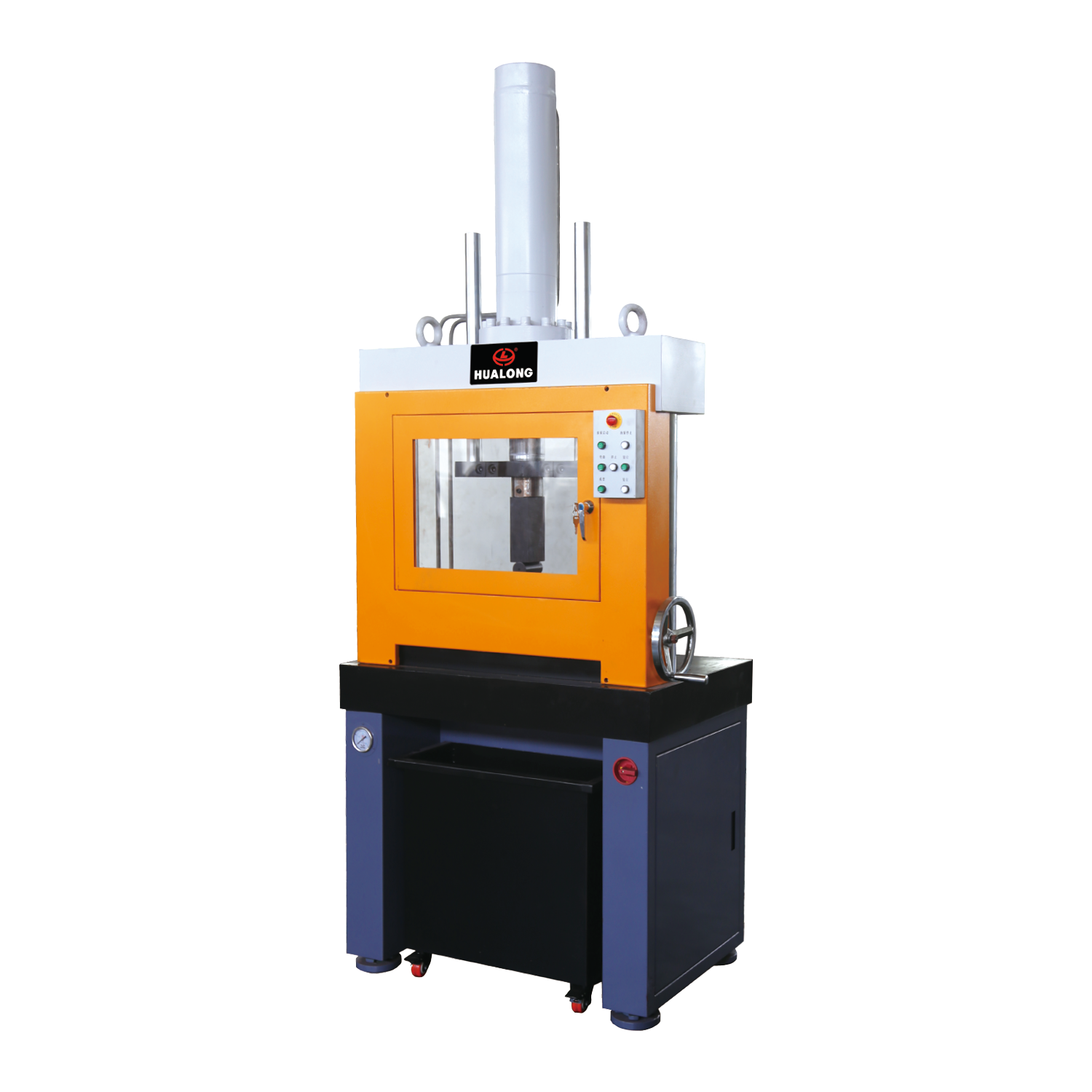

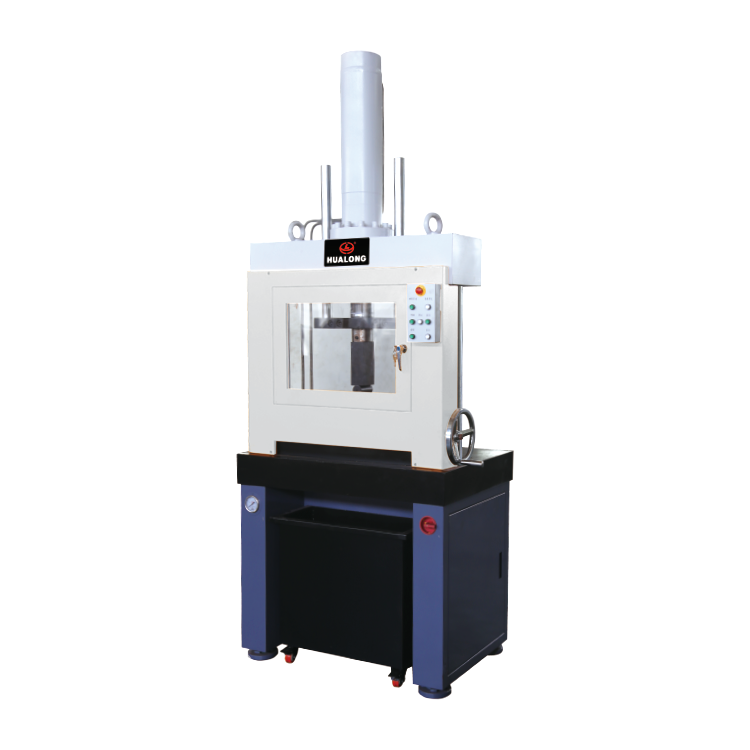

LWS-160 is specially designed to test bend-resistance performance of reinforced rolling steel bars, building steel reinforcements and steel pipes which completely meet the requirements of ASTM A615 A615M, ISO 7438 and other international and national specifications.Generally, the deformed and plain carbon steel bars for concrete reinforcement in cut lengths shall withstand being bent around a pin without cracking on the outside radius of the bent portion.
Technical specifications
Model
LWS-160
Load capacity (kN)
160
Distance between rollers (mm)
0~300
Ram stroke (mm)
420
Bending angle (°)
Nominal 90/ 180 degree
Cylindrical specimen diameter (mm)
φ5-φ32
Flat specimen dimensions (mm)
(6~25) X 50
