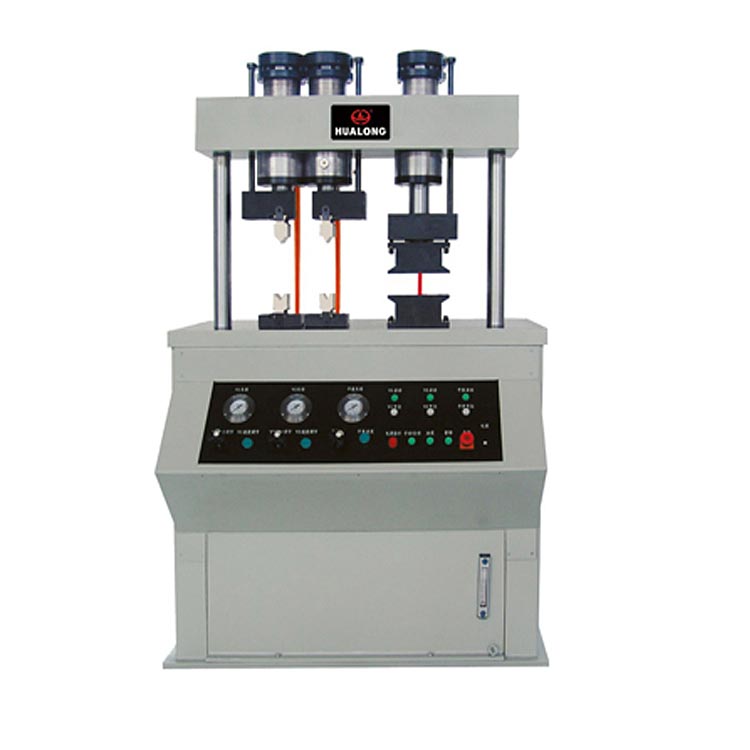

Program-controlled three-station V-bend testing machine

Program-controlled three-station V-bend testing machine
Program-controlled three-station V-bend testing machine
Program-controlled three-station V-bend testing machine

Application:

The equipment is mainly used for the wide and thick plates produced by Iron and Steel Group Corporation for bending test. Wide and thick plate varieties include pipeline steel plate, shipbuilding steel plate, structural steel plate, boiler steel plate, container steel plate, atmospheric corrosion resistant plate, construction machinery plate, etc.


Standard

This machine meets the standard GB/T 232-1999 “Bending test Method for Metal Materials” bending test for metal materials, and determines the ability of bending plasticity deformation. But it is not suitable for bending test of metal pipe and metal welded joint.

GB: T232,T14452 ISO: ASTM: Other.


Specification

Vertical load

1000KN

horizontal load

2000KN

Vertical cylinder piston stroke

350mm

horizontal piston stroke

200mm

Displacement range

horizontal 200mm, vertical 350mm

Displacement indicated value

±0.5%

Vertical piston speed

300mm/min

horizontal piston speed

120mm/min

Bending span

200 x 2mm

Bending center diameter basic specifications (mm)

5, 10, 12, 14, 15, 16, 20, 24, 25, 28, 30, 40, 48, 50, 54, 56, 58, 60, 63, 66, 69, 72, 75, 80, 90, 100, 130. A total of 27

Main machine dimensions (mm)

2360×840×2500

Oil source dimensions (mm)

1100×1050×1200

Control cabinet dimensions (mm)

1160×860×950

Power supply

voltage 380V±10%, 220V±10% 50Hz power 15kW
