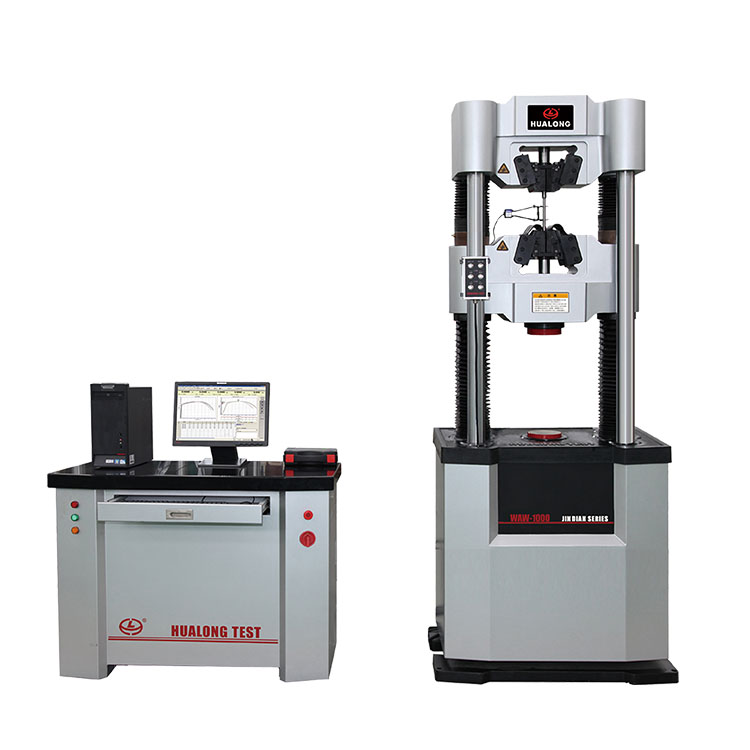

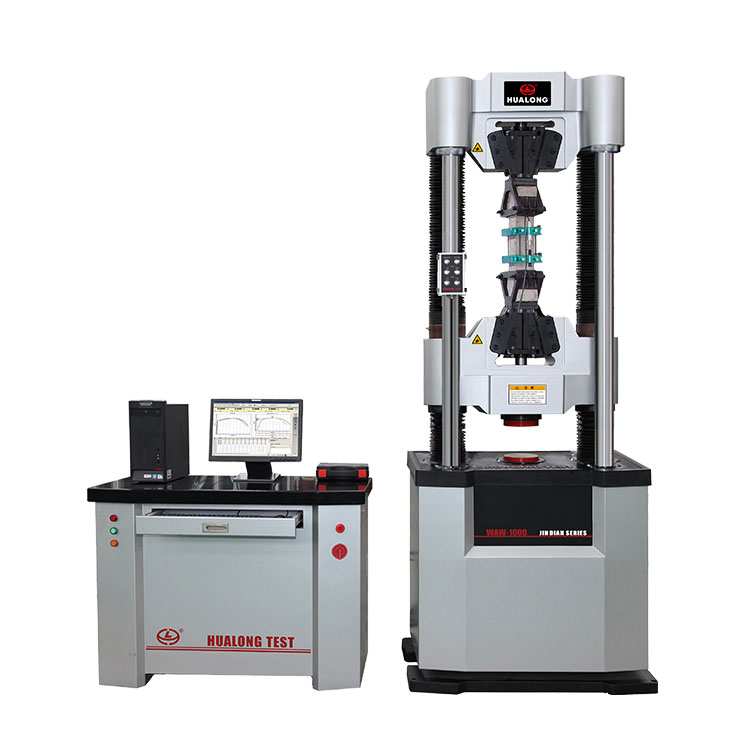

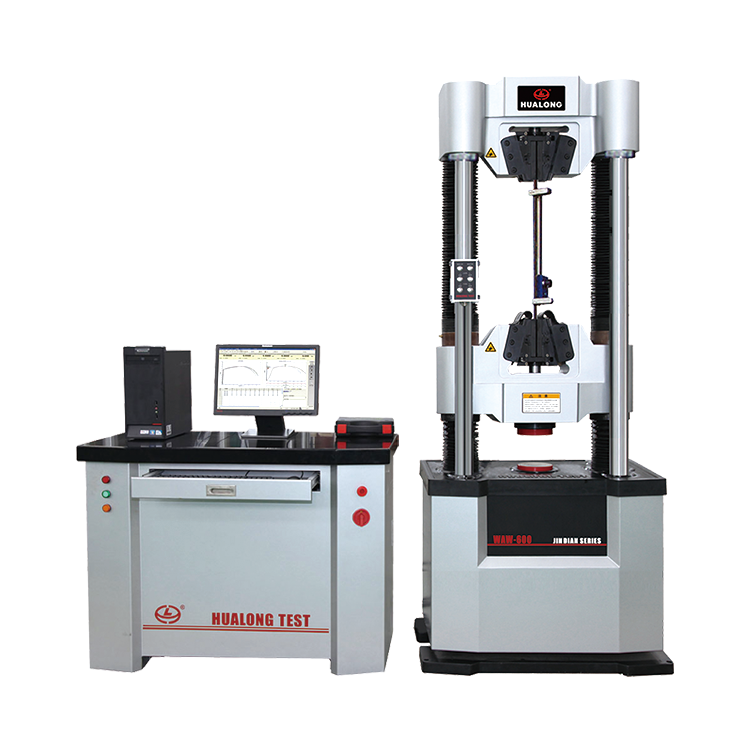

HLY-600KN/1000KN Computer Control Steel Strand Tension Testing Machine
Application
This machine is mainly used in the tensile mechanical properties test of the steel strand wire test. Widely used in space flight and aviation, petrochemical industry, mechanical manufacture, plastic, rubber, ceramic, building materials, metal material, constructional engineering and university and college, mining industry, research institution and other fields.
Standards
ASTM A 416, ASTM496, BS 5896, ect.
Technical parameter
| Model | HLY-600H | HLY-1000H |
| Max.test force(kN) | 600 | 1000 |
| Structure | 4 columns two ball screws, chain transmission, oil cylinder down-setting type | |
| Test machine class | 1 Class | |
| Test force range（FS） | 2%-100% | |
| Relative error of force reading(%) | ≥±1 | |
| Test force resolution | 1/20000 | |
| Deformation measurement range (FS) | 2%～100% | |
| Deformation resolution | 1/20000 | |
| Relative error of deformation reading (%) | ≥±0.5 | |
| Displacement resolution (mm) | 0.01 | |
| Relative error of displacement reading (%) | ≥±0.5% | |
| Effective column space (mm) | 600 | 730 |
| Tension fixtures configuration | Hydraulic automatic clamping type | |
| Stranded wire clamping range(mm) | Ф12.7 or Ф15.2 or Ф15.2 mm | |
| Power supply | 380V/50Hz/Three-phase four-wire system | |
| Compression grip | Φ160 sphere automatically leveling compression grip | |
| Optional parts | ||
| Bending grip | Compression platen, Three points bending grip | |
| Bending roller upper and lower diameter | ||
| Power supply | 3-phase,AC380V, 50Hz（can be customized） | |
