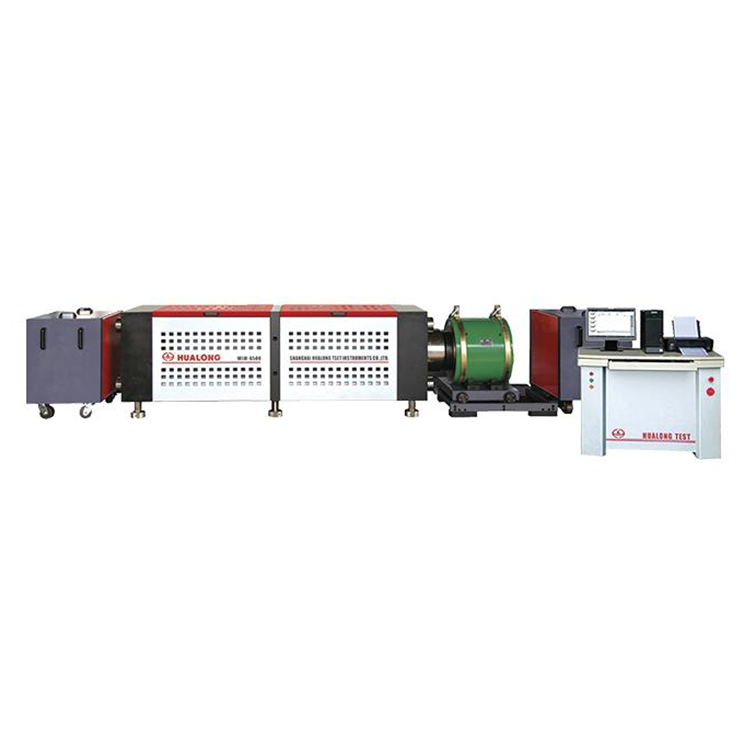

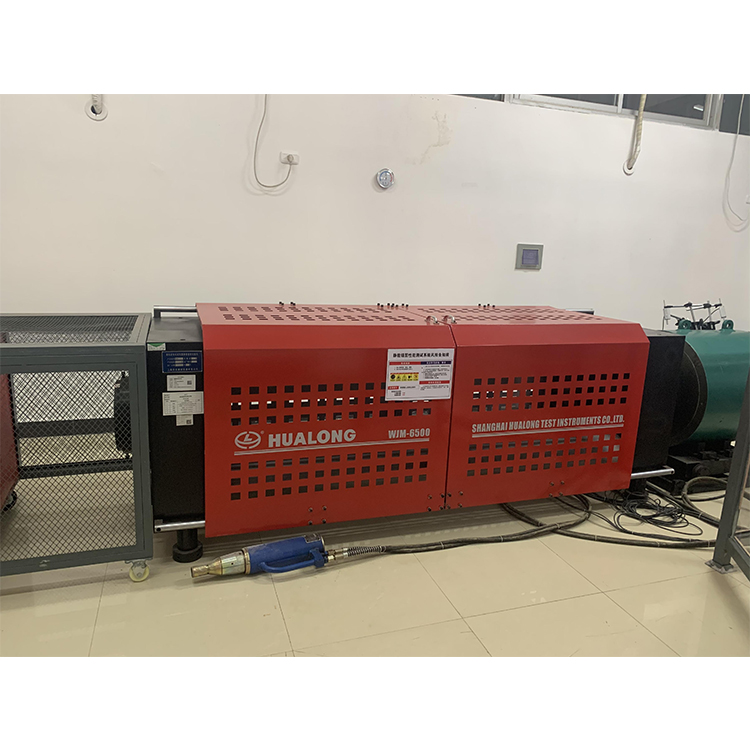

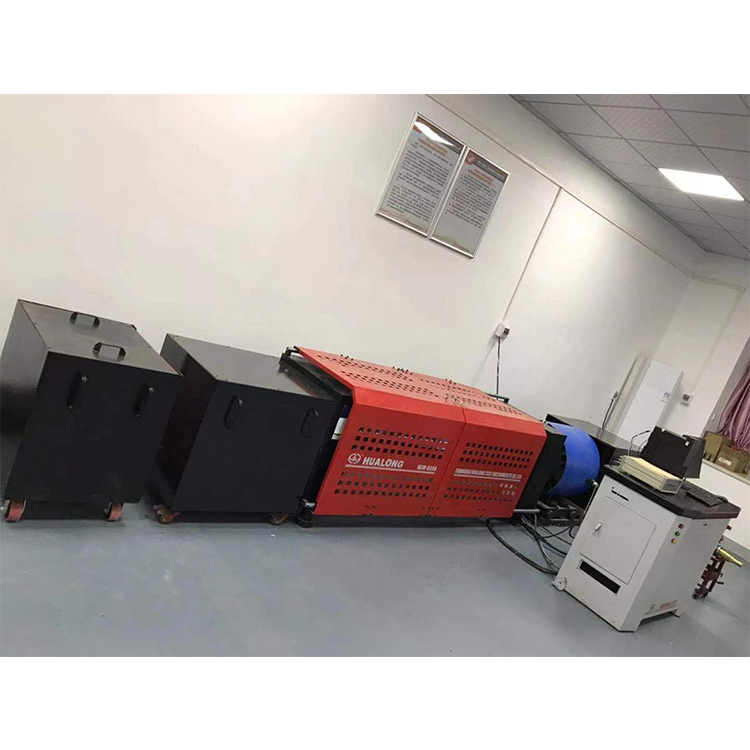

WJM Series Static Anchorage Testinng Machine

1. Product Description:
HUALONG WJM Series is mainly used for railway Bridges and water conservancy, electricity and other infrastructure construction in a steel strand anchor static load solid and low cycle load performance testing.

2. Specifications:

Model	WJM-5000	WJM-6500	WJM-9000	WJM-10000
Max. Test force capacity	5000kN	6500kN	9000kN	10000kN
Measuring range	4%-100%
Test force accuracy	±1%
Measuring range of displacement	0~ 200mm
Displacement accuracy	±1%
Adjusting range of force-controlled velocity	1MPa/s-100MPa/s
Relative error of force-controlled velocity	±1%
Speed setting accuracy	±0.5% (±1%)
Range of force/displacement-control	0.3%-100% F.S
Repeatability	±0.5%
Relative resolution	±0.5%
Piston stroke (mm)	200
Tensile space (mm)	3200	3500	3600	3600
Dimension (mm)	3600700900	3600x750x1000	3600x850x1000	3600x900x1100
Weight (kg)	3400	4200	5600	5600
