1. Introduction:

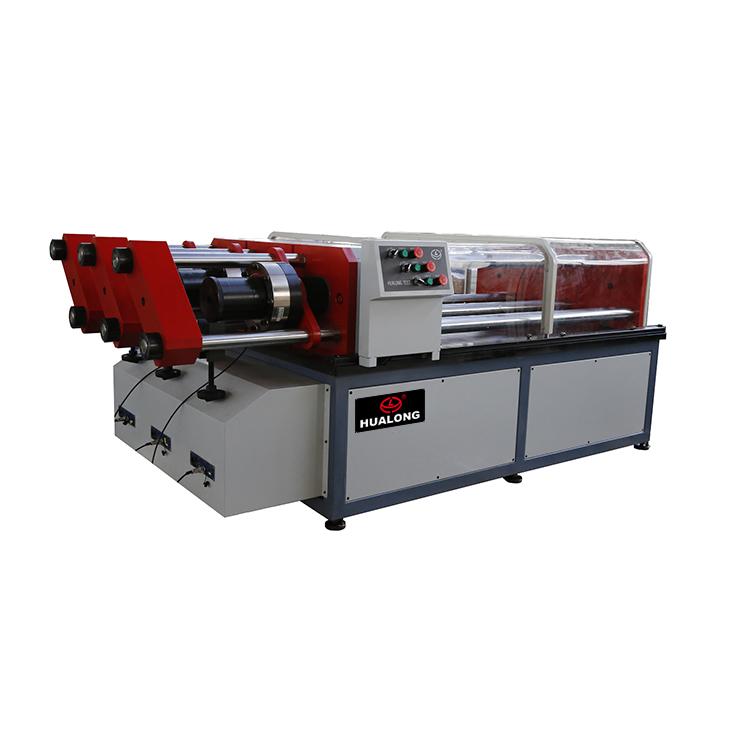

The WSC-300 microcomputer controlled tensile stress relaxation tester is mainly used for the tensile stress relaxation mechanical properties test of metal materials (such as steel strands, PC steel bars and steel wires) at room temperature.
The product meets the requirements of GB/T 10120-1996 Metal Stress Relaxation Test Method and GB/T5224-2003 Prestressed Concrete Strand and ASTM E328-1991 Material and Structural Stress Relaxation Test Method. Related requirements for stress relaxation tests.
2. Specification
Number of workstations: 3
Maximum test force: 300kN/station
Specimen size: φ12.7, φ15.2mm, etc., the length of the specimen is not less than 2.4m
Effective load measurement range: 3~300kN
Load measurement accuracy: better than ±1% of the indication value
Load sensor creep: 30 minutes ≤ 0.02%
Temperature sensor resolution: 0.1℃
Temperature sensor accuracy: ±0.3℃
Displacement measurement accuracy: better than ±0.5% of the indication value
Deformation measurement resolution: ±0.001mm
Strain control accuracy: better than ±5×10^-6mm/mm (gauge length greater than or equal to 1100mm)
Loading speed: 100~5000 N/S, set arbitrarily
Effective stroke of screw: 100mm
Test space: Maximum distance between left and right chucks: 2400mm
Power supply: AC380V±10%, 50HZ, 6.0kW
