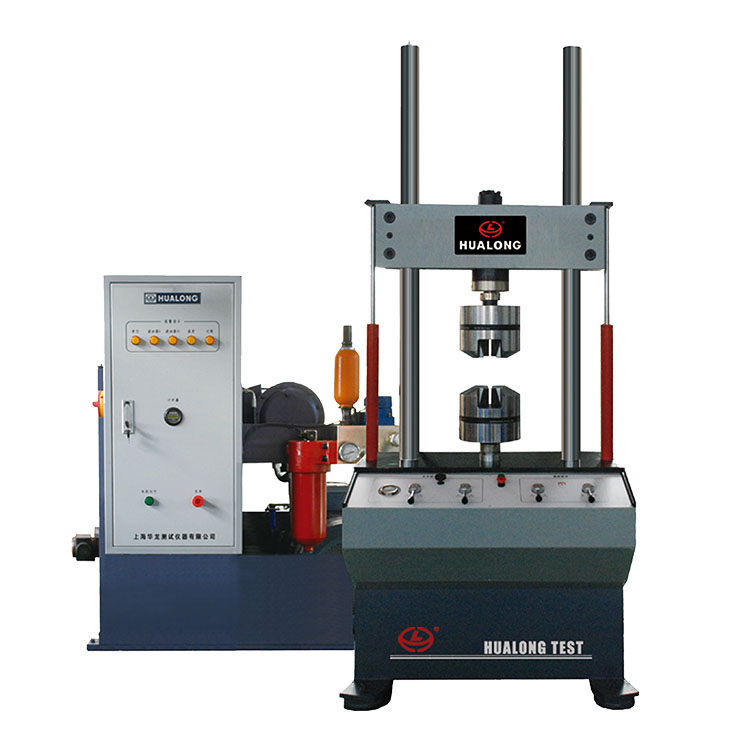

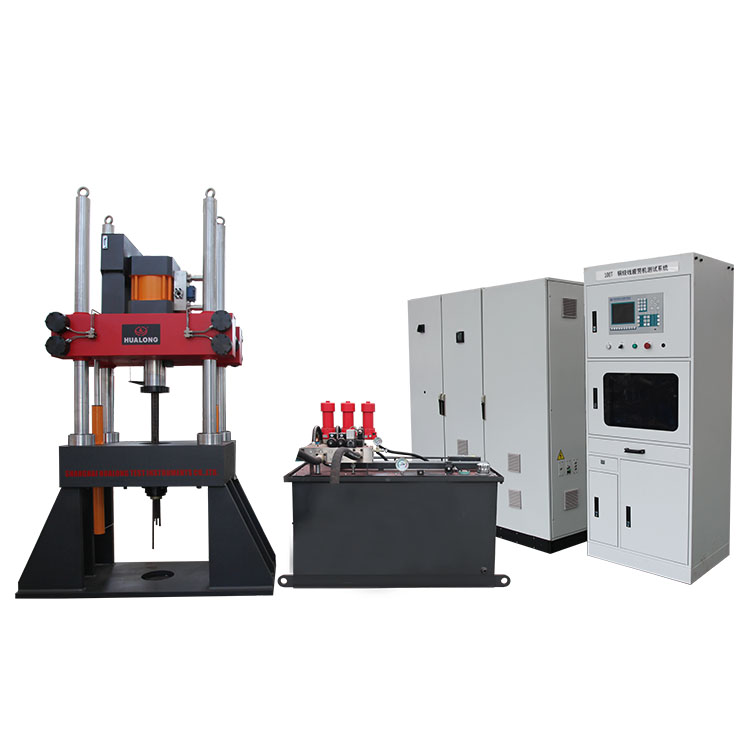

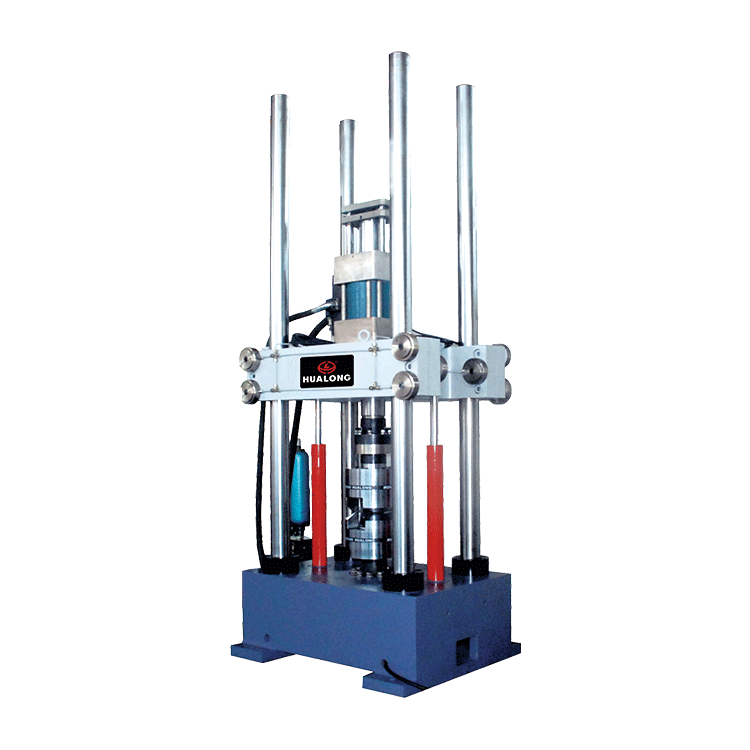

HLP-50KN/100KN/200KN/250KN/500KN Servo-hydraulic Anchorage Fatigue Testing Machine
Application
The HLP SERIES is a compact servohydraulic fatiguetestingsystem thatmeetsthe challengingdemands ofvariousstatic and dynamic testingrequirements.
Standards
- GB / T2611-2007 《Tester General technical requirements》
- GB / T16826-2008 《Hydraulic servo universal testing machine》
- GB 3075 《Axial fatigue testing metal》
- JB / T9379-2002 《Tension and compression fatigue test machine technical conditions》
- GB / T228-2010 《Metallic materials at room temperature tensile test method 》
Specifications
| Model | HLP-50 | HLP-100 | HLP-200 | HLP-250/500 | |
|
Load Capacity(kN) |
Static |
50 | 100 | 200 | 2508500 |
| Dynamic | ±40 | ±80 | ±160 | ±160 | |
|
Measurement Accuracy |
Load |
±1.0% of Reading | |||
| Displacement | ±1.0% FS of Each File | ||||
| Deformation | ±1.0% of Reading | ||||
|
Range Of Frequency |
0.1～15Hz / 20Hz / 50Hz | ||||
| Stroke of Piston(mm) | ±50 | ±50 | ±75 | ±75 | |
|
Distance Between Columns(mm) |
500 | 500 | 700 | 700 | |
|
Distance Between Grips(mm) |
50~600 | ||||
| Specification of constant voltage servo pump station | flow≥37L/min, 21Mpa, 380V three phase | ||||
