1. Introduction:

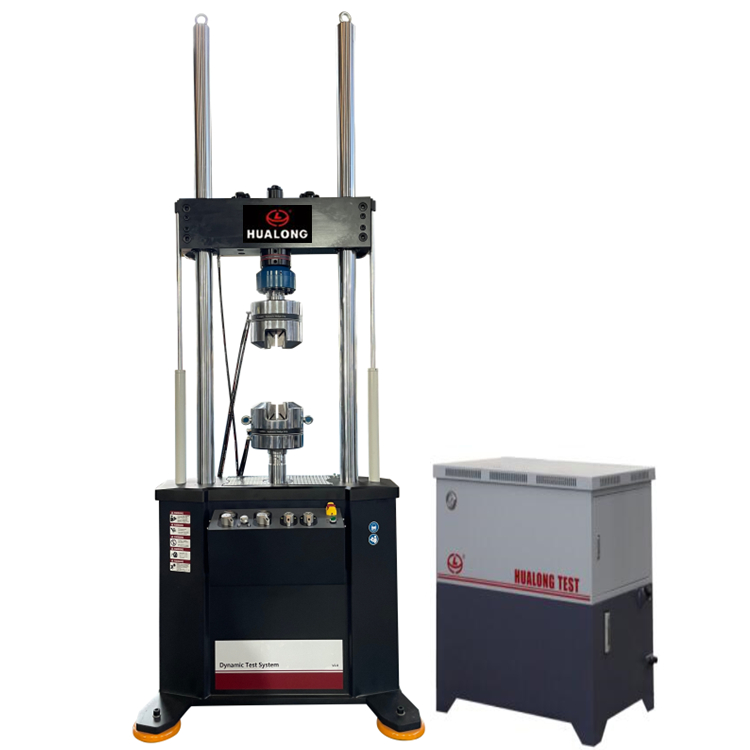

The HLP SERIES is a compact servohydraulic fatigue testing system that meets the challenging demands of various static and dynamic testing requirements.This systems provide complete testing solutions to satisfy the needs of advanced materials and component testing, and are ideally suited for fatigue testing and fracture mechanics. The compact design of the HLP frame makes it ideal for installation within any laboratory environment, generally without the need for strengthened floors or raised ceiling heights.
2. Specification:
Model
HLP50
HLP100
HLP250
HLP500
Force capacity
kN
50
100
250
500
Actuator dynamic stroke
mm
100, 150, 250
100, 150, 250
150, 250
150
(in)
(4, 6, 10)
(4, 6, 10)
(6, 10)
(6)
Min vertical test space
mm
140
140
231
427
(in)
(5.5)
(5.5)
(9. 1)
( 16 .8)
Max vertical test space
mm
1213
1213
1549
2002
(in)
(47 .8)
(47 .8)
(61 .0)
(78 .8)
Working height
mm
922
922
922
922
(in)
(36 .3)
(36 .3)
(36 .3)
(36 .3)
Column spacing(test space width)
mm
533
533
635
762
(in)
(21 .0)
(21 .0)
(25 .0)
(30 .0)
Base width
mm
1018
1018
11 12
1351
(in)
(40 . 1)
(40 . 1)
(43 .8)
(43 .8)
Base depth
mm
698
698
737
896
(in)
(27.5)
(27.5)
(29.0)
(35.3)
