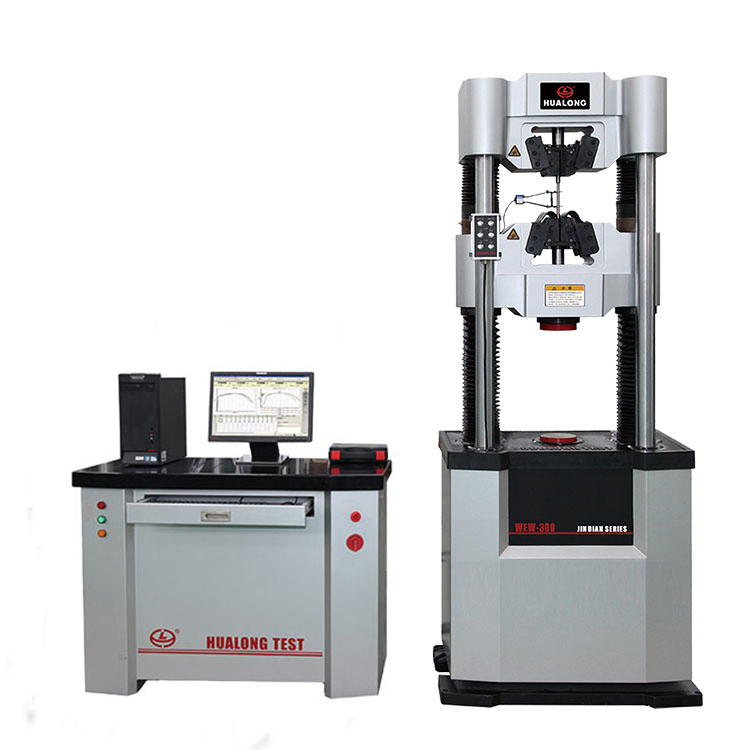

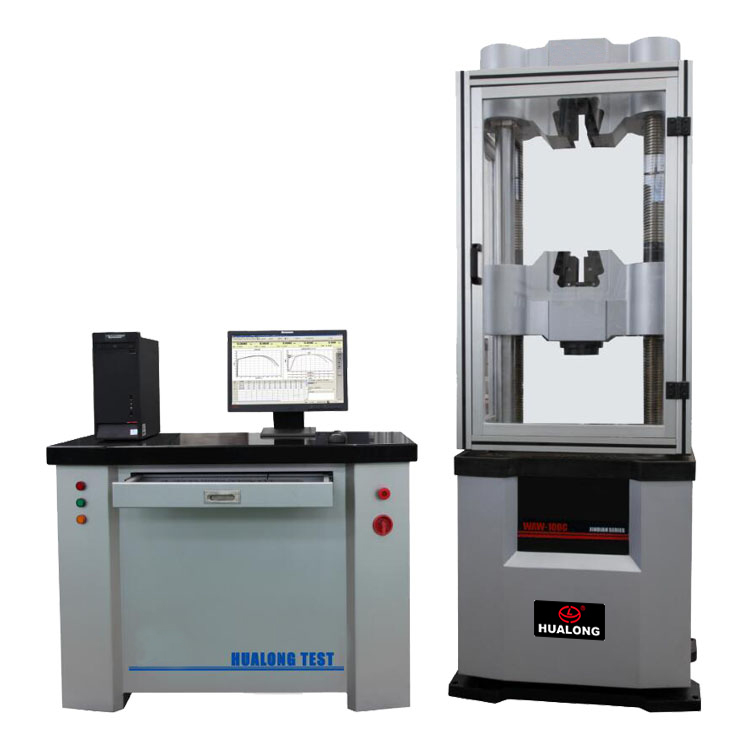

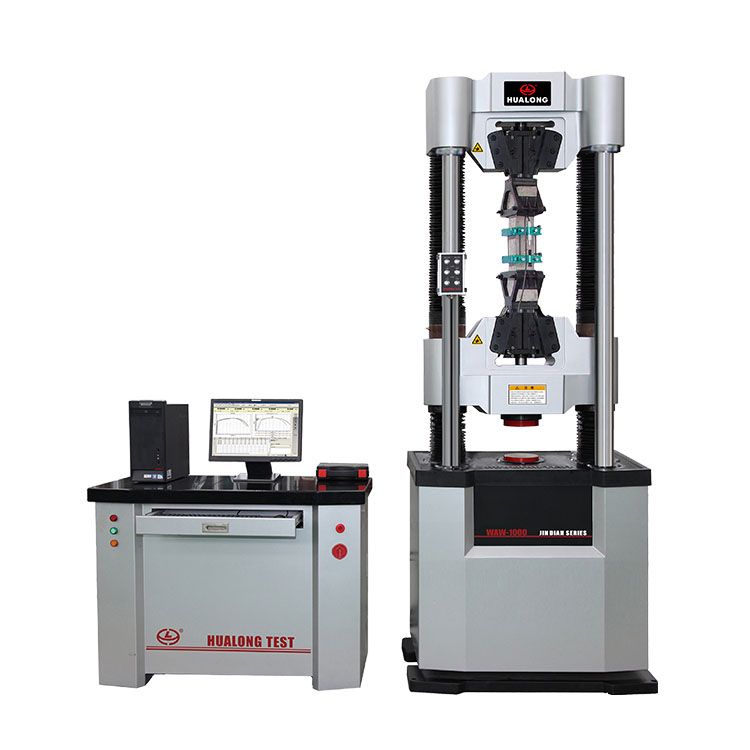

HLY-100KN/300KN Tensile Strength Testing Machine Hydraulic Universal Testing Machine

Usages:

hualong HLYseries (Dual space) Servo-Hydraulic Universal Testing Machine is ideal for high-capacity tension, compression, bend/flex, and shear testing.

Standards:

It accords with the correspondent requirements of BS, EN, ISO, ASTM, JIS, GB and many other testing methods.

Technical Specifications:

Model		HLY-500	HLY-1000	HLY-1500	HLY-2000
Capacity	kN	500	1000	1500	2000
Load resolution	kN	Capacity/500, 000 (fully auto scaling of single measurement range)
Load frame dimensions	Clearance between grips
	in	27.6	27.6	31.5	31.5
	mm	700	700	800	800
	Clearance between platens
	in	27.6	27.6	27.6	27.6
	mm	700	700	700	700
	Clearance between columns
	in	22	24	26.8	26.8
	mm	560	610	680	680
Machine dimensions	Load frame
	in	332483.3	352592.3	482592.3	482592.3
	mm	8506002,115	8906402,115	1,2206402,345	1,2206402,345
	Control console
	in	45.33135.4
	mm	1,150780900
Gross Weight	lbs	12,787	15,432	20,944	26,455
Gross Weight	kg	5,800	70,00	9,500	12,000
