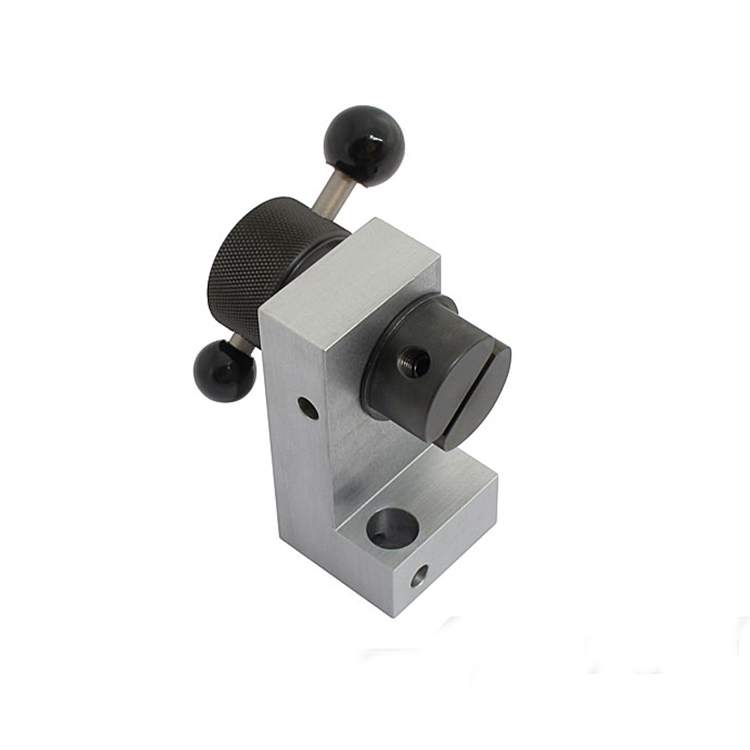

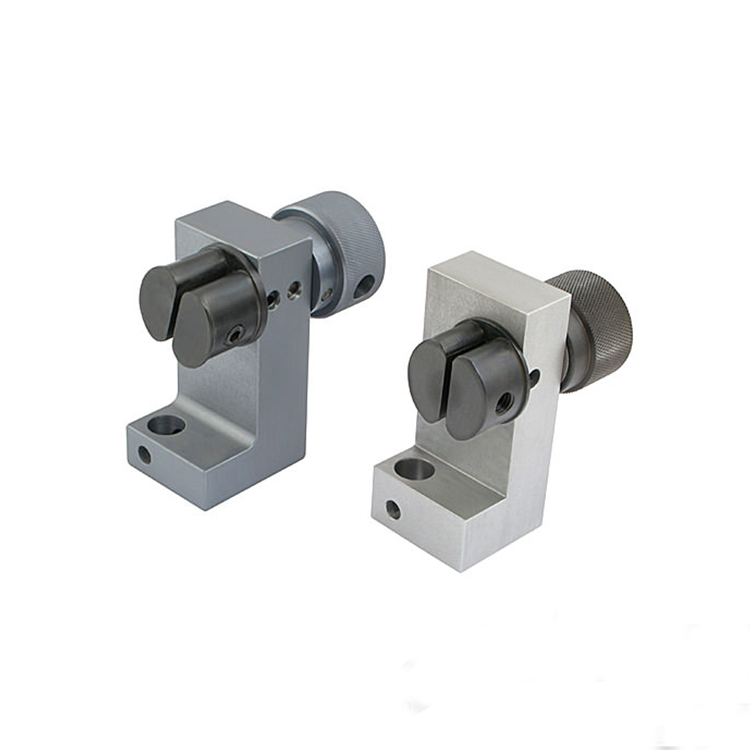

Roller Grips 25mm

1. Introduction:
The roller-type gripper is designed to fasten and hold narrow nylon tapes, tows, ropes made of textiles, rubber, polymers and other materials with a width of not more than 25 mm during tensile tests with a load force of 8, 10 and 50 kN.
The sample is clamped between rollers in the form of a loop.
GOST 16218.9 - elastic textile products: ribbons, braid, cord, etc.;
EN 919 - fiber ropes;
GOST R ISO 2307 - rope products.

2. Specification:

Indicators	HLV-50	HLV-8	HLV-10
Max. tensile load, kN	50	8	10
Sample width, no more than, mm	25	22 / 24 / 25
Mounting hole diameter*, mm	31,7	15,9
Diameter of clamping jaws (rollers), mm	100	40
Overall dimensions, mm	152×118	105×90
