1. Functions:
Type
Type B
Model
HL-CBD300-D
HL-CBD500-D
Max. impact energy
J
300
500
Optional pendulum
J
150,300
250, 500
Pendulum moment 150J
Nm
80.3848
Pendulum moment 300J
Nm
160.770
Pendulum moment 250J
Nm
241.1543
Pendulum moment500J
Nm
321.5390
Distance from support axis to percussion center
mm
750
Impact speed
m/s
5.2
5.4
Low Temperature Chamber
-40°C/ -60°C /-80°C/ -100°C/ -190°C

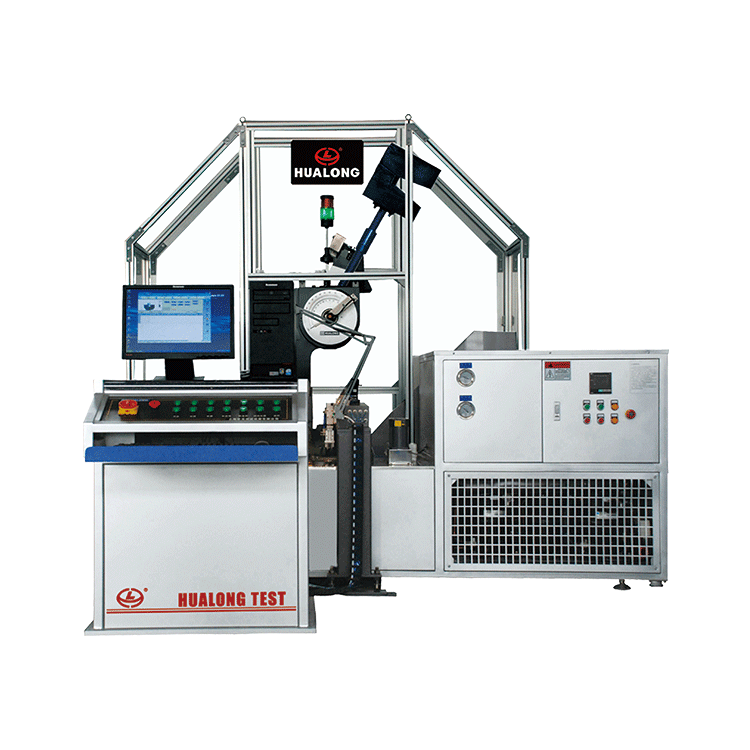

This machine is used for measuring the Charpy impact resistance of metal and other materials.which meets the requirements for CE marking and standard ISO 13849. This machine can be used under low temperature equipment with low temperature chamber.
2. Standards:
ISO 148-1 -Metallic materials - CHARPY pendulum impact test. JIS Z 2242 -Method for CHARPY pendulum impact test of metallic materials. EN 10045-1 -Metallic materials-CHARPY impact test. ASTM E23 (CHARPY) -Standard test method for notched bar impact testing of metallic materials.3.
3. Specification:
