Application:

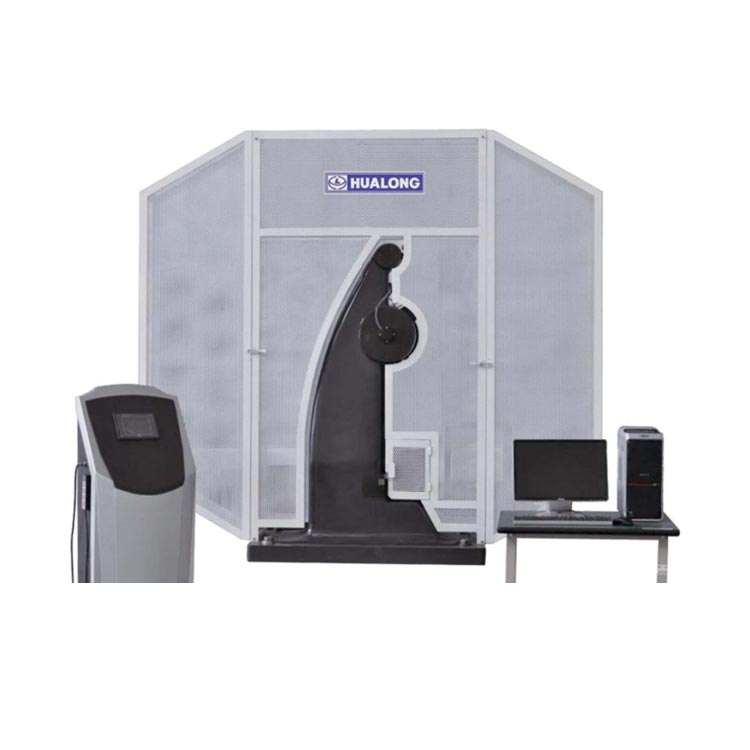

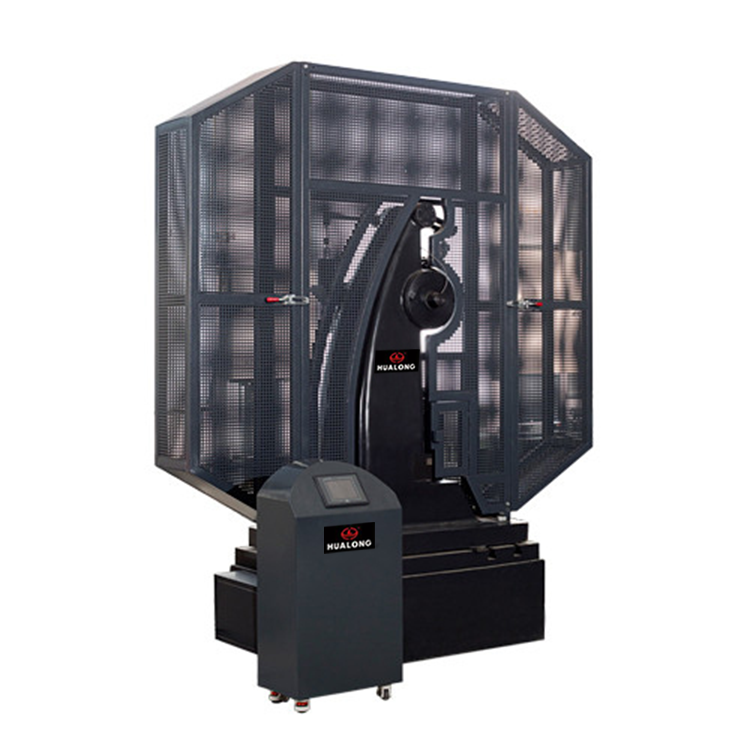

HUALONG CBD Series Pendulum Impact Testing Machine meet the growing demand for accurate and repeatable impact testing of metallic materials in accordance with ASTM and ISO specifications. They are EN 10045-2 ‘CHARPY impact test on metallic materials’ – Method for the verification of impact testing machines and ASTM E 23, ‘Standard test methods for notched bar impact testing of metallic materials’. As a general guideline, in North America, most users prefer verifications to the ASTM E 23 method while Europe generally require EN 10045-2 verifications.
Test standards:
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002,etc.
Technical specification:
Model | CBD-150 | CBD-300 | CBD-500 | CBD-750 |
Impact Energy (J) | 150 | 300 | 500 | 750 |
Energy Resolution (J) | 0.1 | 0.1 | 0.2 | 0.4 |
Release Angle | 150° | |||
Angle Resolutior | 0.06° | |||
Pendulum Length | 750 mm (29.5 in) | |||
Anvil Span | 40±0.2 mm | |||
Maximum tangential velocity of pendulun | 5-5.5 m/second (16.4-18.05f/second) | |||
Pendulum torque | 80.38N.m | 160.77N.m | 267.95N.m | 401.93N.m |
Enclosure Dimensions |
2140mm*820mm*1950mm (84.6*32.3*76.8 in) |
2280mm*950mm*2100mm (89.8*37.4*82.7 in) | ||
Overall Weight | 1000kg(2205 lbs) | 1600 kg (3527 lbs) |
