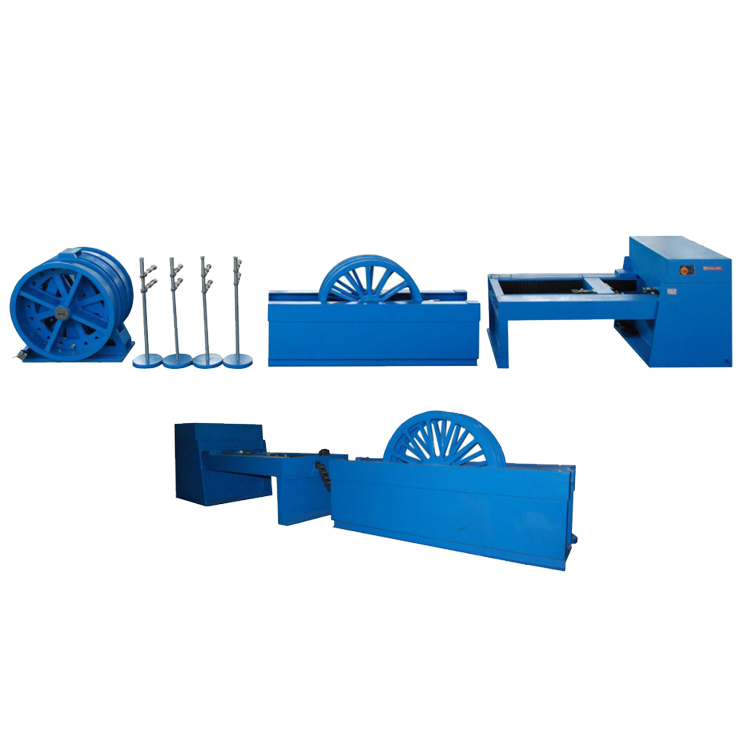

Computer Control Light Cable Mechanical Performance Testing Equipment

Standards

ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002,etc

Specification

Model	GLY-50~200
Capacity	30KN	30N~30000N
	50KN	50N~50000N
	100KN	100N~100000N
	200KN	200N~200000N
Optical cable flattening load measuring range	100N~10000N
Crush platen	100*100mm,hardnessHB240~280
Deformation measurement accuracy	±0.5%
Displacement measurement accuracy	±0.3%
Crosshead travel	800~1100mm
Elongation measurement	Elongation measurement:1000mm
	Measuring resolution is better than 10μm
	Accuracy is better than ±0.5%.
