The length of the specimen under torsion should be sufficient to permit the appropriate clamping and twisting, and long enough to sustain the applied torsion. A typical value for small cables 1m, whereas larger cable samples are usually defined in terms of the cable diameter. A common length is 125 times the cable diameter. Armored cables may require a longer cable sample or a smaller number of torsion cycles.

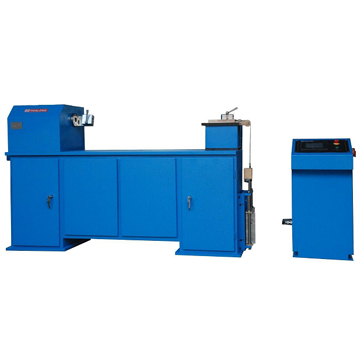

Model |
GNZ-1000 |
Torsion length |
1000mm |
Torsion angle |
±90°, ±180°, ±360° |
Setting range of testing times |
1~9999 |
Setting range of frequency |
5-30 times/min |
Mass of hammer |
the mass of pre-stressed hammer is 27.5kg, in which, poise bracket (5kg), 4 5kg poises and 1 2.5 poise |
Dimension |
Host dimension: 2010×520mm Dimension of control panel: 540×410mm |
Power supply |
3-phase 4-wire, 50Hz, 1KW. In which, power of motor is 0.55KW |
Ambient temperature |
10℃~40℃ |
Ambient humidity |
less than 80% (Non-condensing) |
