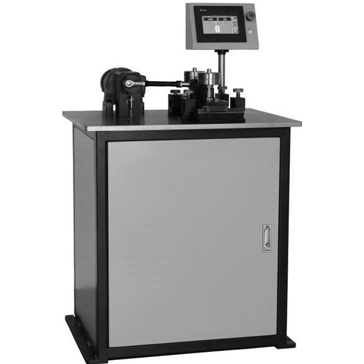

Optical Fiber Cable Abrasion Resistance Instrument

The abrasion resistance of optical fibre cables has two aspects:

a)The ability of the sheath to resist abrasion;

b)The ability of cable markings to resist abrasion.

The purpose of this test is to determine the ability of an optical fibre cable sheath to resist abrasion.

Sample

The sample shall be of a length sufficient to carry out the specified test. A typical length is 750 mm.

specitication

1.Model: GMS-100

2.Abrasion length: 10mm (sheath) 40mm(markings)

3.Abrasion times: 1-9999

4.Frequency: 55±5 times/min

5.Mass holder: 5N×2

6.Mass options: 5N×2, 10N×2

7.Machine weight: 280kg
