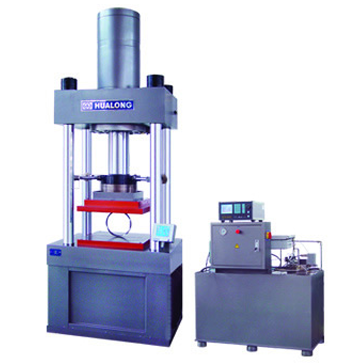

Tube Ring Flattening Testing Machine

•Top mounted cylinder to allows the machine has suitable operation height.
•Lower platen with specimen feeding carriage.
•Constant speed loading is available.
•All operations are done on software.
•Specially designed software for flattening testing of tube ring.  Main technical specifications:
Load capacity：3000kN
Measuring range: 2%-100%
Load resolution: 1/300000(No-range switching and keeping unchanged)
Load measurement accuracy: ≤±1%
Frame structure: Double-acting and upsetting cylinder, four-columns structure
Displacement measurements accuracy: ≤±0.5%
Ram stroke: upon request
Maximum loading speed: 300mm/min
Specimen centralizing method: automatic
Power resource: 400 Volts, Three Phase, 50 Hertz，230 Volts, Single Phase, 50 Hertz
