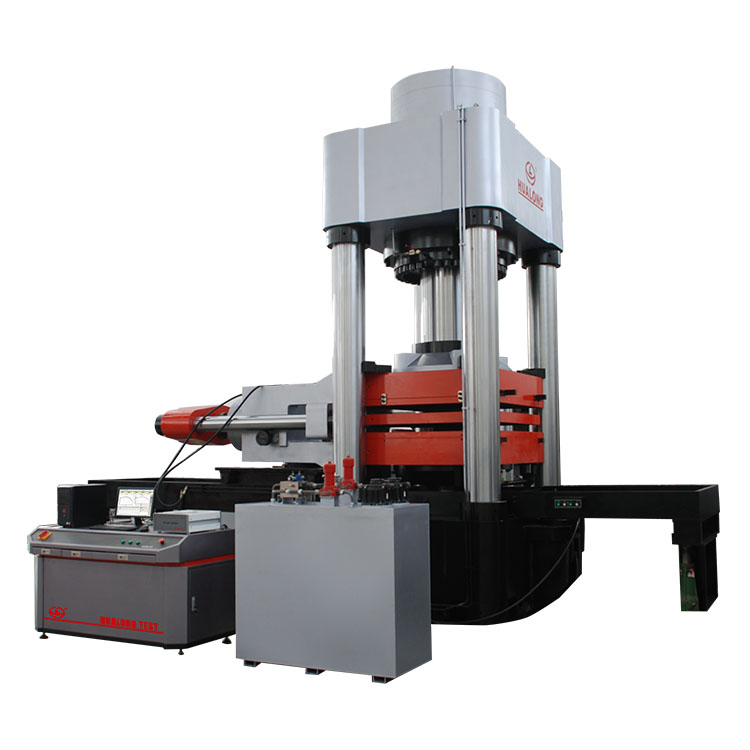

YJW Series Hydraulic Shear Testing Machine

Model

YJM-5000

YJM-10000

YJM-20000

YJM-30000

Test Force Range(KN)

20-5000

40-10000

80-20000

120-30000

Test Force Accuracy (%)

Indication Value±1

Horizontal shear force(KN)

1000

2000

4000

6000

Horizontal Piston Stroke(mm)

180

250

250

300

Coner Push Force(KN)

300

600

1000

1000

Upright Deformation Measurement range(mm)

0-10(Resolution0.001mm)

0-20(Resolution0.001mm)

Radial Deformation Measurement range(mm)

0-10(Resolution0.001mm)

0-20(Resolution0.001mm)

Horizontal shearing Measurement range(mm)

0-150(Resolution0.001mm)

0-200(Resolution0.001mm)

Dimensions(mm)

5100*1200*3900

5575*1860*3660

8600*2300*5300

10520*3120*5800

Power

10 .AC380V±10%

20 .AC380V±10%

10 .AC380V±10%

25.AC380V±10%

Gross Weight(kg)

15000

35000

90000

120000
