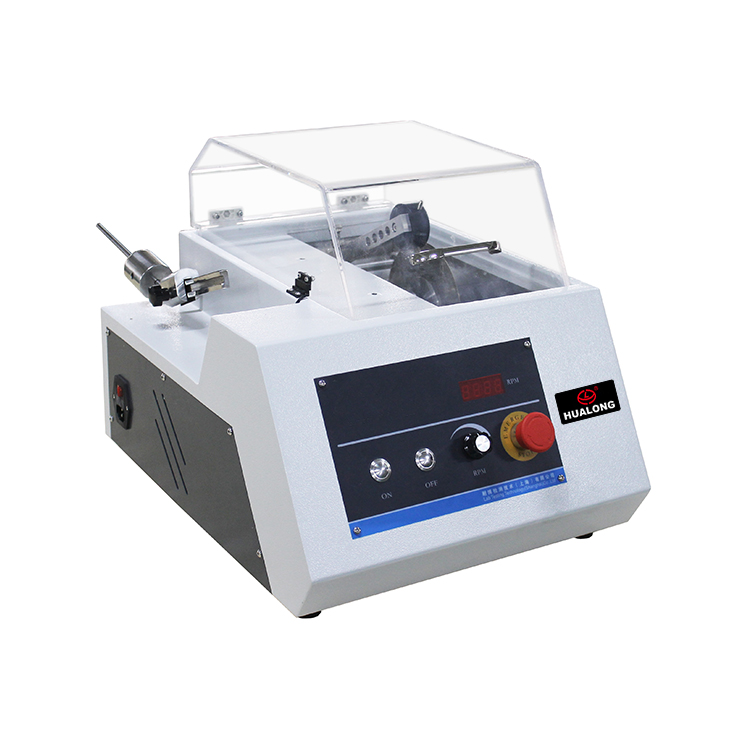

HLC150 Precision cutting machine

HLC150 Precision cutting machine
HLC150 Precision cutting machine
HLC150 Precision cutting machine

1. Product features
- Closed transparent protective cover, safety switch for the operator to provide protection, easy to observe.
- Through the gravity loading system, the feed rate of the processed object is fine-tuned to minimize sample damage
- Closed - loop control cutting to prevent overload burning motor, circuit, etc.

2. Specification

Item

Specifications

Cutting disc

Standard diamond cutting blade 150x12.7x0.43mm (6inch)

Cutting positioning accuracy

0.01 mm

Built-in cooling unit

Automatic circulating cooling of cutting fluid (cutting disc drives water circulating cooling of flume)

Brushless DC motor

Power: 550W Speed: 0-1650r/min

Display

LED digital display

Emergency brake

Emergency stop switch

Power supply

AC220V  50HZ

Overall dimensions

520 x 430 x 390 mm

Weight

33kg
