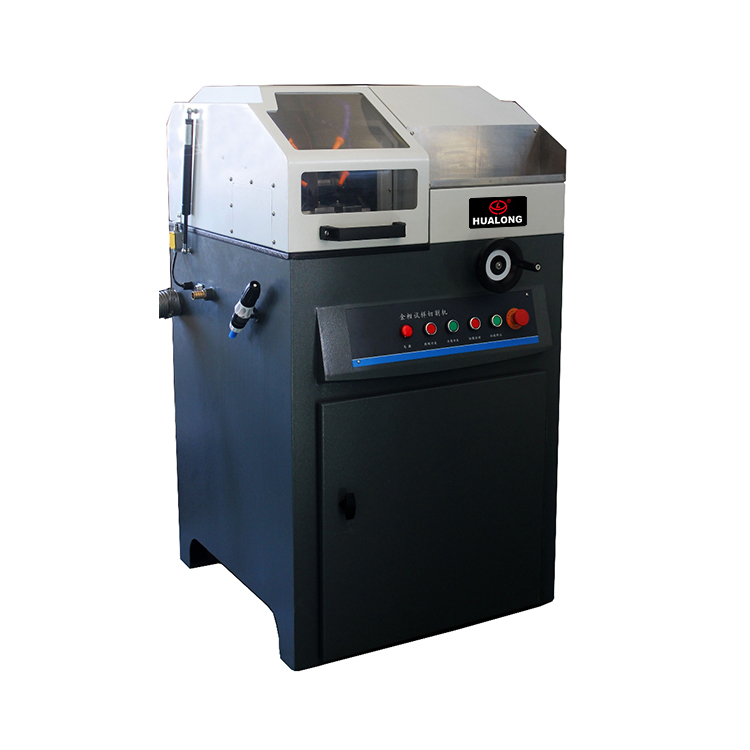

HLC-400Y Cutting machine

1.Product features
-This machine adopts the structure of fully enclosed double housing, cutting chamber and motor chamber are independent and separate, not affecting each other, safe and reliable；
-This machine adopts fast clamping device, which can clamp objects more quickly and accurately；
-Single side air spring device, moderate elastic force, switch cutting chamber cover shell easily；
-Operate the hand wheel drive motor to cut the cutting piece in Y direction, and the speed is fully controlled manually；
-Special cooling water tank for circulating coolant；
-The main parts and components such as the cover shell of cutting piece, grinding wheel spindle and clamp mouth are made of stainless materials with long service life；
-Right side stainless steel sample placement slot, improve the equipment usability and convenience；
-Large cutting range and transmission power；
-Smooth rotation and low noise.

2.Technical parameters

Item	Specifications
Maximum cut diameter	Φ120mm
Spindle speed	2800r/min
Cutting disc	Standard φ400332mm
Motor	3KW,380V,50HZ
Emergency brake	Emergency stop switch
Cutting room light	Low voltage dc lighting
Cutting platform size	240*232mm
Clamp device	Standard fast fixture
Cooling device	External circulating filter water tank 40L, multiple sets of adjustable water spraying device and cleaning nozzle
Cutting mode	Manually move the cut in the Y direction
Observation window	Explosion-proof transparent engineering plastics
Overall imension	7687801285mm
Weight	250KG
