Tweezer Grips with Movable and Rigid Fixation (0.5 KN)

1. Introduction:
It is used for testing the tensile strength at break, tensile testing of small specimens with a load force of 0.5 kN.

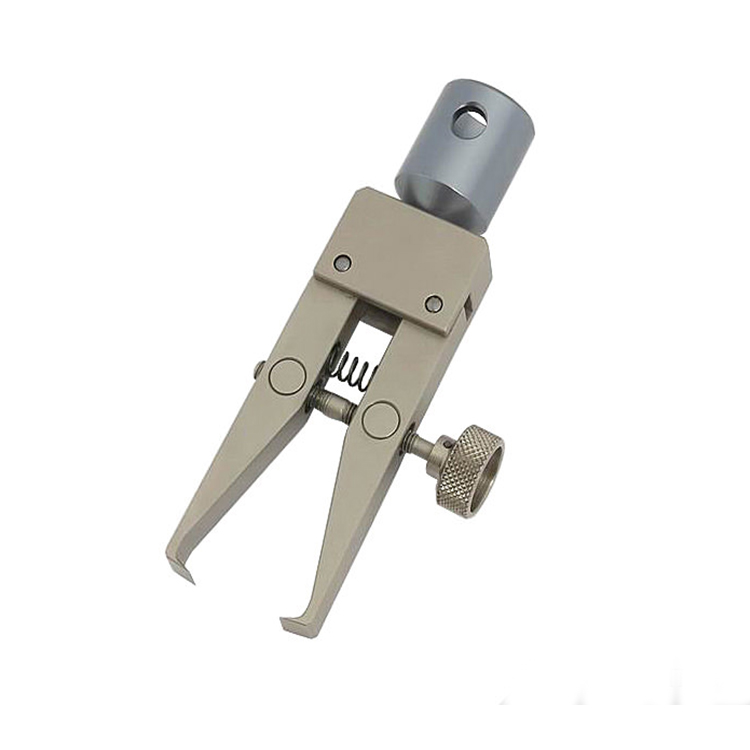

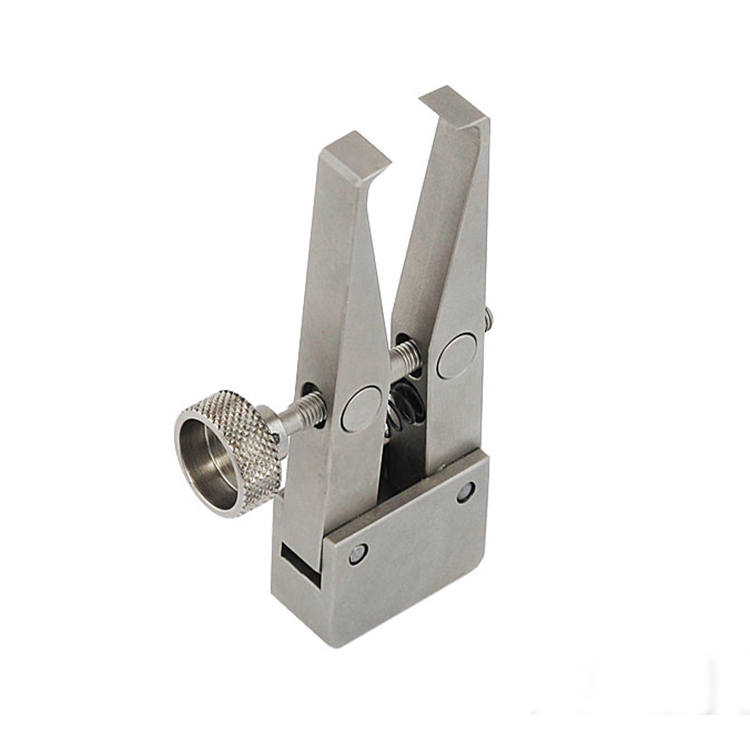

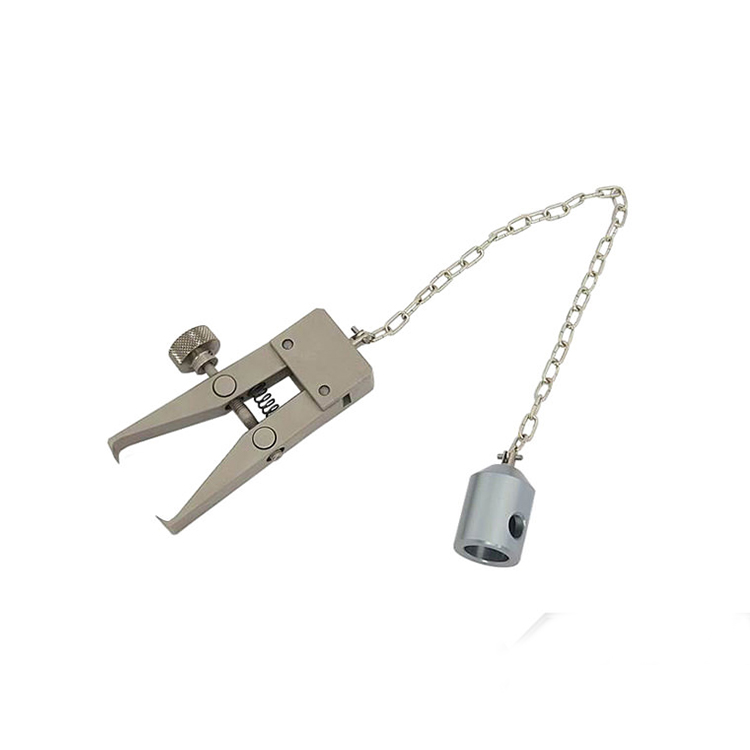

The design of the grip PP-0.5-Ts provides for chains for flexible attachment to the adapter, the grip PP-0.5 has a rigid fixation - it is attached directly to the machine, the grip PP-0.5-A has a rigid fixation and is attached to the machine through an adapter ( adapter)

2. Specification:

Options	0.5	0.5-Ts	0.5-A
Max. tensile load, kN	0.5
Width of clamping jaws, mm	ten
Opening size*, mm	0 to 33.1
Mounting hole*, mm	M4	15.9
Chain length, mm	-	250; 150	-
Capture overall size, mm	94×10×57.9
Weight, kg	180
Note: * - other sizes are possible according to the customer's specifications
