Home>>PRODUCTS >> Testing Machine >> Special Testing Machine >> Optical Cable Testing MachineApplication:

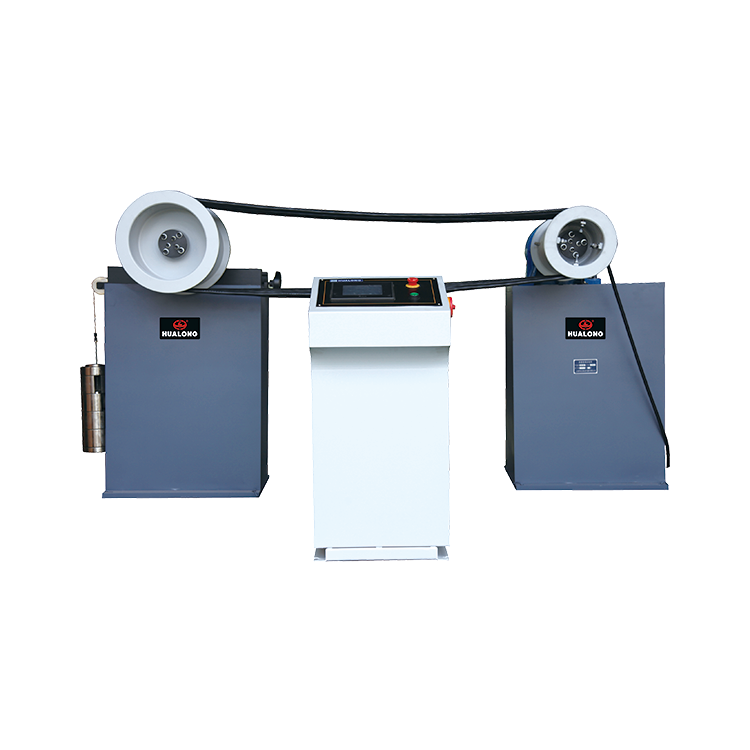

GJR-300 Series Optical Fiber Cable Bend (Winding) Testing Machine is intended to determine the ability of an optical fibre cable or cable element to withstand bending around a test mandrel such as U bend and S bend.
Parameter:
Mandrel diameter (Drive) | mm | D200, D300 |
Mandrel diameter (Slave) | mm | D300 |
Positioning range of slave mandrel | mm | 0-250 |
Max. bending cycles | Cycles | 1-9999 |
Winding frequency | Cycles/min | 2-20 (Clockwise / Anticlockwise) |
Winding velocity | r/min | 12 |
Mass of weights for applying tension |
Weight bracket: 5kg 1 pieces of 5kg weight increment, 1 piece of 2.5kg weight increment. |
|
Dimensions (L*W*H) | ||
Working frame | mm | 1000*720*1300 |
Control console | mm | 400*300 * 800 |
Power | 3-phase 4-wire, 50Hz, 1kW. |
