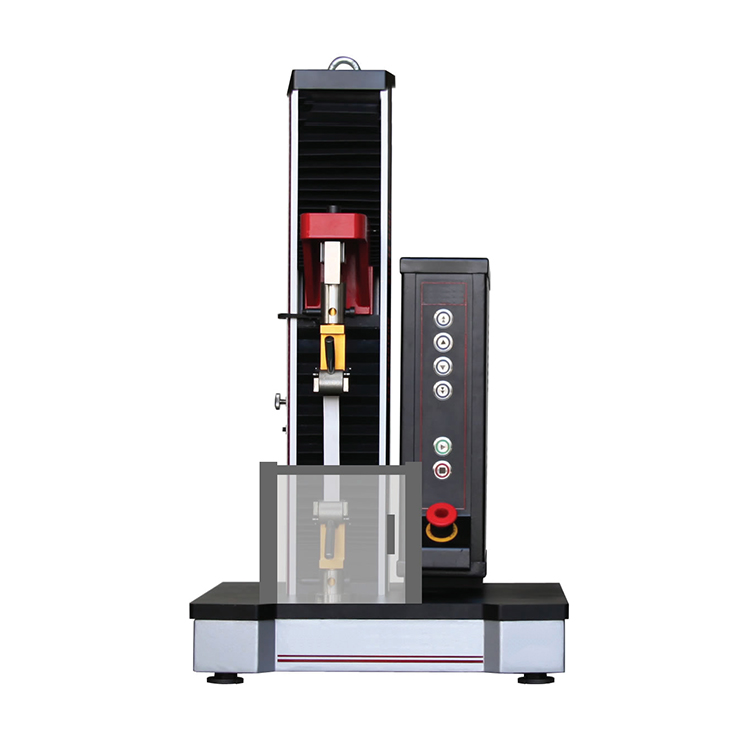

IEC-60794-1 Method E1 Optical Fiber Cable Crush Cut Tester

Application

Optical Fiber Cable Crush Cut Tester complies with employs an IEC-60794-1-2 Method E3/E12 to perform
compression (Crush) test on optical cables.
Cable is laid to rest under compression as per detailed speciﬁcations, and then the attenuation of ﬁber
optics is measured.
It employs servo-controlled system to apply compressive force on the cable in constant speed and
maintains the compression force in speciﬁed period.

Standard
IEC-60794-1 Method E1, EN 187000 method 501, EIA/TIA-455 no. 33

Specification

Technical Parameters
Model	HL-GQC-5/ HL-GQC-10
Crush Load capacity	5KN/10KN
Crosshead travel	600 mm
Loading speed	0.01 – 500 mm/min
Displacement measuring accuracy	±0.3%
Position measurement accuracy	±0.01% of reading or 0.0001 mm, whichever is greater
