LT-2000KN Computer-controlled electro-hydraulic servo pull-off breaking force testing machine

LT-2000KN Computer-controlled electro-hydraulic servo pull-off breaking force testing machine
LT-2000KN Computer-controlled electro-hydraulic servo pull-off breaking force testing machine
LT-2000KN Computer-controlled electro-hydraulic servo pull-off breaking force testing machine
LT-2000KN Computer-controlled electro-hydraulic servo pull-off breaking force testing machine
LT-2000KN Computer-controlled electro-hydraulic servo pull-off breaking force testing machine
LT-2000KN Computer-controlled electro-hydraulic servo pull-off breaking force testing machine
LT-2000KN Computer-controlled electro-hydraulic servo pull-off breaking force testing machine
LT-2000KN Computer-controlled electro-hydraulic servo pull-off breaking force testing machine
LT-2000KN Computer-controlled electro-hydraulic servo pull-off breaking force testing machine

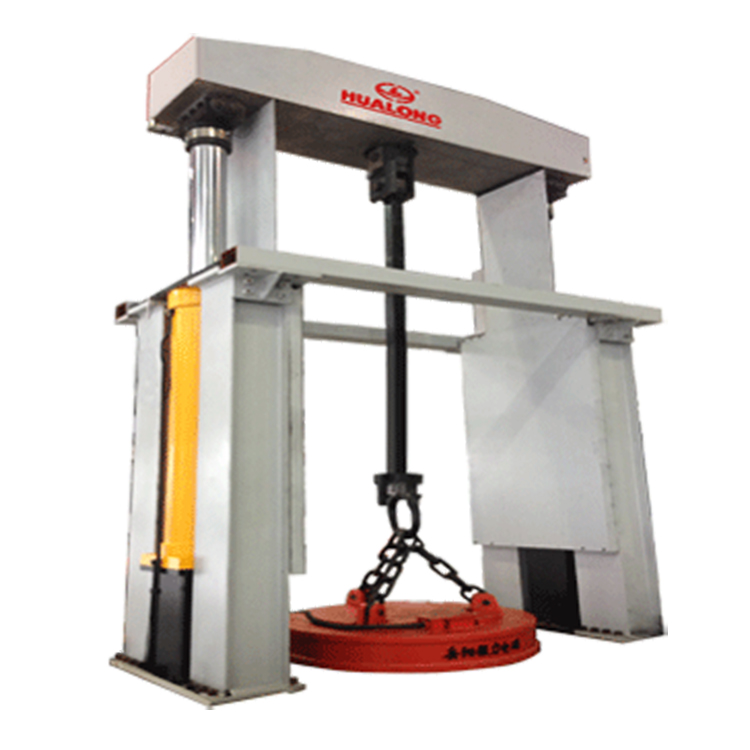

The testing machine is used to test the pull-out force of the electromagnet in the lifting state and the breaking force of the electromagnet suspension chain. Mainly used in electromagnet manufacturers and testing units.

The whole machine adopts a frame structure.

The cylinders on both sides move synchronously to push the beam to stretch.

The synchronization is good, the stretching space is large, and the stroke is long. Power device" utility model patent. Synchronous control of the cylinders on both sides of the main engine adopts displacement sensors on two cylinders, load sensors on the two cylinders, and a tensile load sensor for coordinated control. When the two cylinders rise synchronously, the displacement and force values are equal.

The equipment is highly expandable, and different tensile tests can be completed by using different fixtures.

The hydraulic source adopts intelligent servo control, the output of the oil pump is close to the same power output, the heat generation is very small, no oil source cooling device is required, and the hydraulic source has low noise.

The machine adopts microcomputer servo control, automatic continuous and stable loading, automatic load retention, automatic completion of the test process, automatic data collection, storage, and curve drawing, and automatic printing of test reports.

This product has beautiful appearance, high overall rigidity, good stability, and can be used for a long time. The operation is convenient, safe and reliable.
