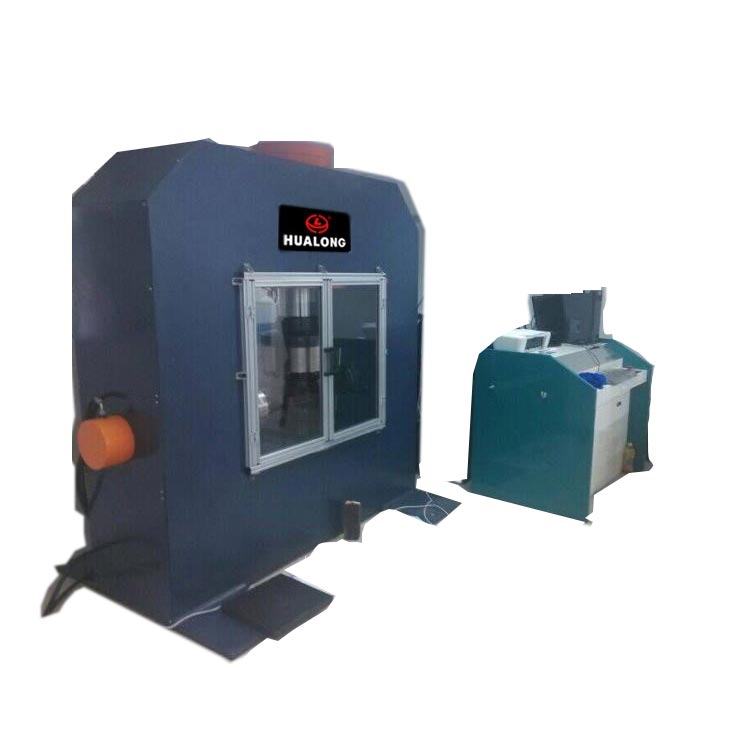

WHY-1000/500 1000KN Microcomputer controlled electro-hydraulic servo rock shear testing machine

Application

Used for compression and direct shear tests of rock blocks, structural surfaces (such as joint surfaces, layers, slices, cracked surfaces, etc.) and concrete (or mortar) and rock contact surfaces (cement surfaces), as well as concrete and other materials Shear strength test of joint surface.

Technicalparameters

Test force	1000kN
Shear test force	500kN
Test force measurement error	± 1.0% value (from range 1% ~ 100%)
Test force control stability	± 1% value
Tangential deformation measurement range	0-50mm
Vertical deformation measurement range	0-20mm
Deformation measurement error	± 0.5% F.S
Axial tangential loading speed	0.001 ~ 10mm/min or 2 ~ 100kN/min
Sample size	400400400mm (length * width * height)
Long-term stable working time	not less than 1000 hours
Test force relative error	± 0.5%
Test force measurement range	1%-100%FS (the whole process is not graded)
Test force resolution	500000 yards
Servo loading channel	2 channels
Column distance	950mm
Power supply	1.1KW (380V, 50Hz)
Overall size	890mm860mm1970mm
Weight	1000kg
