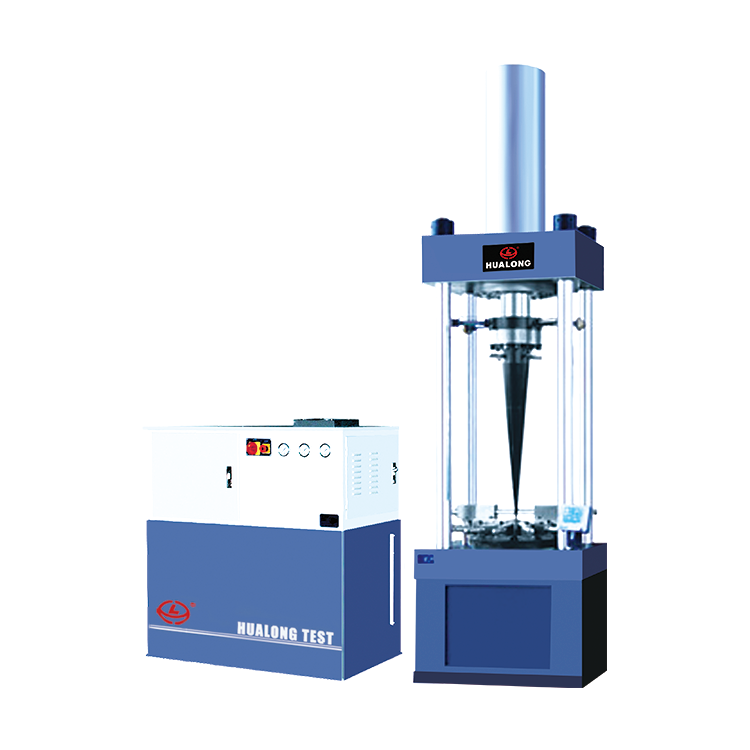

Electro-hydraulic Servo Tube Ring Expanding Testing Machine

1. Introduction:
Electro-hydraulic servo tube ring expanding testing machine mainly used for metal tube expanding test, to understand the performance of metal tube, the testing machine conforms to the requirements of national GB/T245-1997 "Metal tube crimping Test Method" and national GB/T242-1997 "Metal tube flaring Test Method", is a formal test instrument.
This series of machine is a new generation of electro-hydraulic servo hualong company flattening machine, design is the structure of the four pillar framework, load and deformation sensor can not step, avoid conflict when range switching, performance of the tester is full with resolution, at the same time, with multiple protection function and the hardware, software, overload protection, And oil temperature overtemperature alarm, high oil pressure safety protection. In addition, the testing machine uses Auto CTS-500 full digital multi-channel closed-loop measurement and control system, to achieve the measurement, is the test instrument of many users.

2. Specification:

Product type	Static hydraulic test system, special test system
Standards	GB: T242,T245 ISO: ASTM: Others: API 5L
Materials	Metals, pipes, pipes, components
Industry	Metallurgical industry, quality testing center, transportation
Testing type	Expanding test
Load capacity	Load: up to 600 kN, load: up to 1000 kN, load: up to 2000 kN, load: more than 2000 kN
