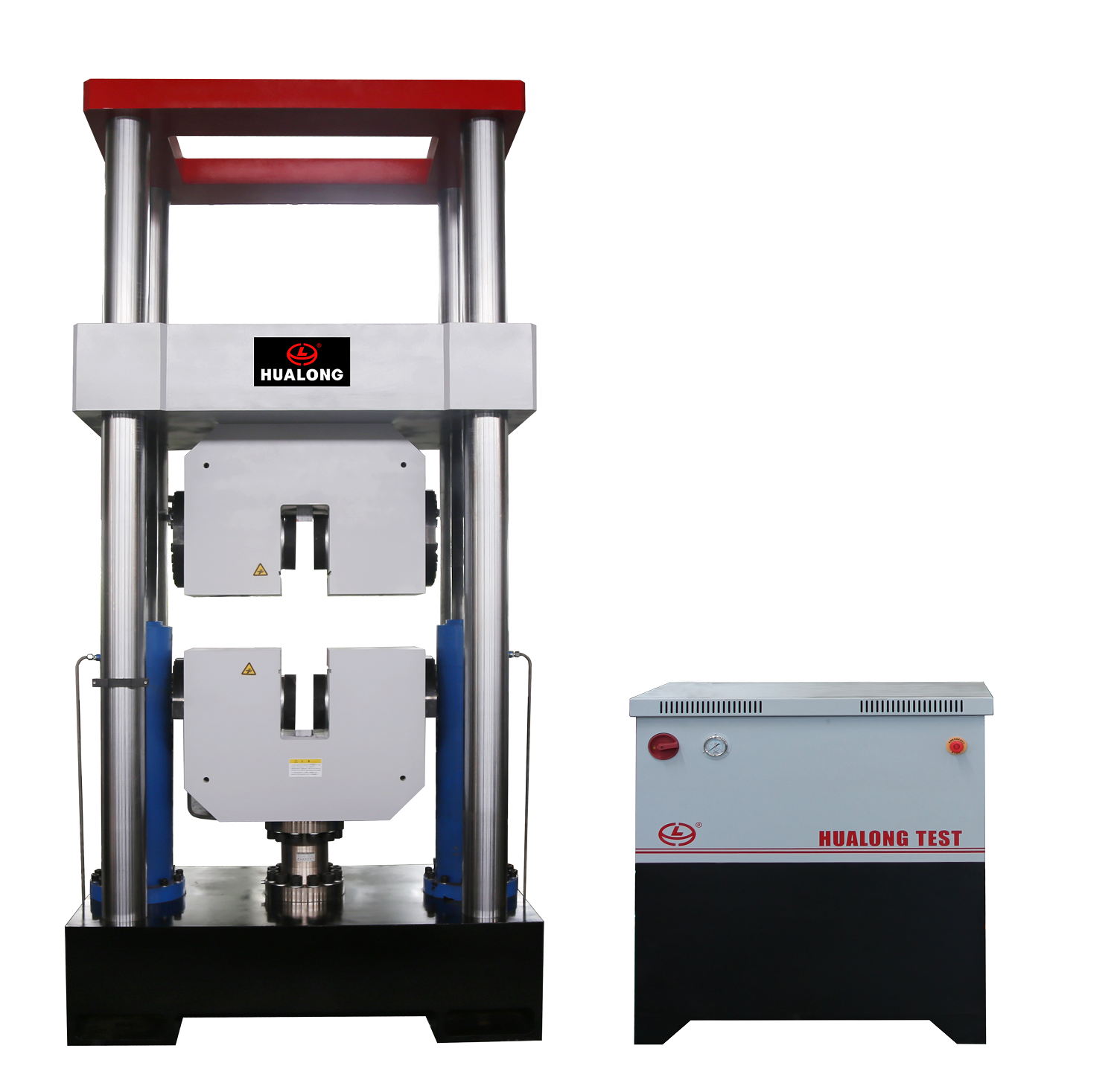

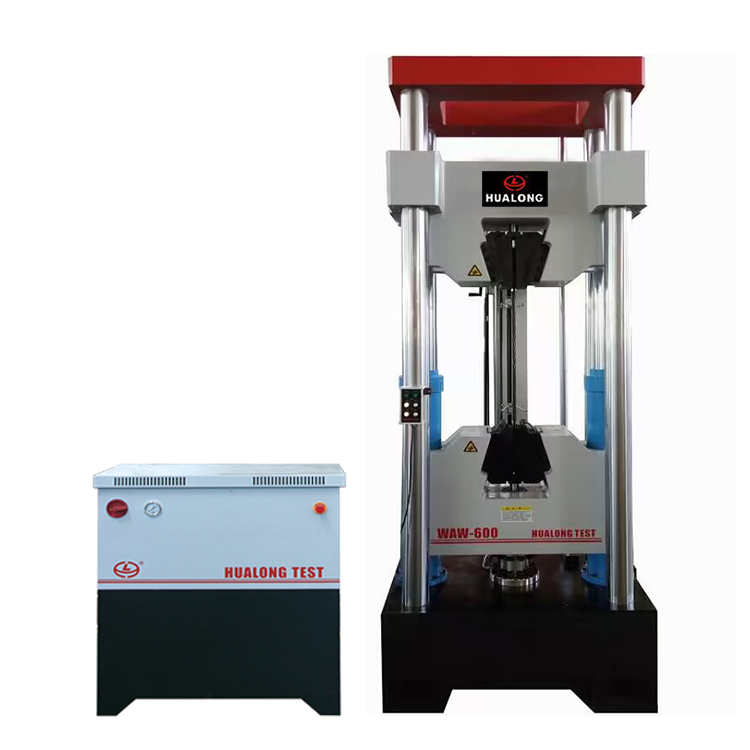

HLY-1000E Dual Oil Cylinder Servo Hydraulic Universal Testing Machine

Model and specification

HLY-300E

HLY-600E

HLY-1000E

HLY-1600E

HLY-2000E

Capacity (kN)

300

600

1000

1600

2000

The host structure

single space four column, dual cylinder,frame structure

Accuracy class

 1 class   (0.5class optional)

Test force range(kN)

1%～100%F.S

Test force resolution

Capacity/500, 000 (fully auto scaling of single measurement range)

Test force accuracy

±0.5% (±1% optional）

Deformation resolution

500,000

Deformation accuracy

±0.5%

Displacement resolution(mm)

0.001

Displacement accuracy

±0.5%

Adjusting range of stress-controlled velocity

1MPa/s-100MPa/s

Relative error of stress-controlled velocity

                 ±1% (±2%）

Adjusting range of strain-controlled velocity

0.00025/s-0.0025/s

Relative error of strain-controlled velocity

±1% (±2%）

Range of force/ extension/ displacement- control

0.3%~100%F.S

Accuracy of force/ extension/ displacement- control

Set value ＜10% F.S, ±1%， set value ≥10%F.S,±0.5%

Speed setting accuracy

±0.5% (±1% optional）

Speed setting range (mm/min)

0-250

0-200

0-150

Tensile space(mm)

950

1100

1100

Space between columns(mm)

650

850

1100

Piston stroke(mm)

950

1100

1100

Diameter of round specimen(mm)

∮6-∮50

∮8- ∮80

Thickness of flat specimen (mm)

0-60

0-80

Dimension of load frame (mm)

1100*740*2650

1370*800*3000

1740*960*3610

Dimension of control console(mm)

1260*760*1150

1260*760*1400

Weight of load frame (kg)

5000

9000

15000

Weight of control console

800

1000

Power （kW)

9, AC 380V ±10%

 18, AC 380V±10%

Note:

1. Extra wide and/or extra height frames are available.

2. Power supply system is completely customizable.

3. Specifications are subject to change without notice.
