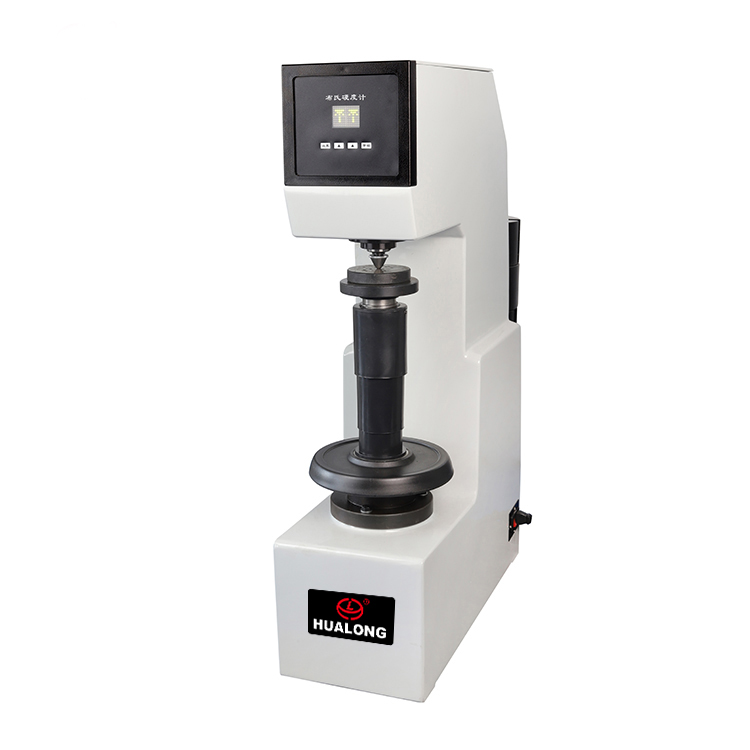

HLB-3000 Brinell Hardness Tester
Can be used to determine un-quenched steel.,Cast iron.,Non-ferrous metal and the soft texture of bearing metal materials ' brinell hardness value.
Specification:
|
Model |
HLB-3000 |
|
Testing Range |
8-450HBS, 8-650HBW |
|
Testing Force |
1.839、2.452、7.355、9.807、29.42KN （187.5、250、750、1000、3000kgf） |
|
Loading Mode |
Weight |
|
Indentation measurement method |
20 times readings microscope |
|
Duration time |
6～99S |
|
Max Testing Height |
230mm |
|
Distance Between Pressing Head Center and The Wall |
120mm |
|
Tungsten carbide ball penetrator |
Φ2.5,Φ5,Φ10 |
