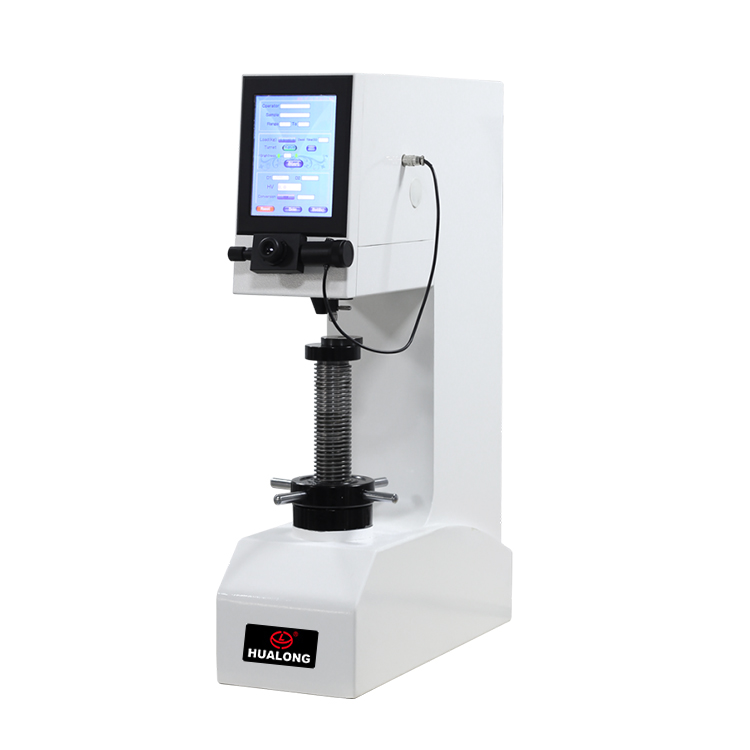

HLB-3000MDX Automatic Turret Brinell Hardness Tester

Product introduction

1) With electric loading, high precision load cell closed-loop control system, each force automatically compensated

2) automatic turret, objectives, indenter switch freely，the test point is located automatically and accuracy，auto-loading, auto-unloading

3) Eyepiece structure with digital encoder, measure D1 and D2 values, and LCD directly displays hardness values and D1 and D2 values.

4) Calibrate according to the standard block or length scale

5) Test force can be auto-corrected by standard dynamometer

6) Vickers and Rockwell hardness values can be converted

7) All data can be saved in the U disk as EXCEL

Technical parameters

Model	HLB-3000MDX
Brinell scale	HBW2.5/62.5、HBW2.5/187.5、HBW5/62.5、HBW5/125、HBW5/250、 HBW5/750、HBW10/100、HBW10/250、HBW10/500、HBW10/1000、 HBW10/1500、HBW10/3000
Test force（Kgf）	62.5kgf(612.9N)、100kgf(980.7N)、125kgf(1226N)、 187.5kgf(1839N)、250kgf(2452N)、500kgf(4903N)、750kgf(7355N) 1000kgf(9807N)、1500kgf(14710N)、3000kgf(29420N)
Carried standard	BSEN 6506, ISO 6506, ASTM E10, GB/T231
Test force precision	62.5～250kgf≤1% 500～3000kgf≤0.5%
Test device resolution	0.1um
Hardness resolution	0.1HBW
Dwell time	0～99S
Data out put	LCD display
Data storage	Results saved in U disk as Excel
Max Height of Specimen	200mm
Distance of Indenter to outer wall	155mm
Size	550×210×800mm
Weight	110kg
Power supply	AC220+5%,50～60Hz
