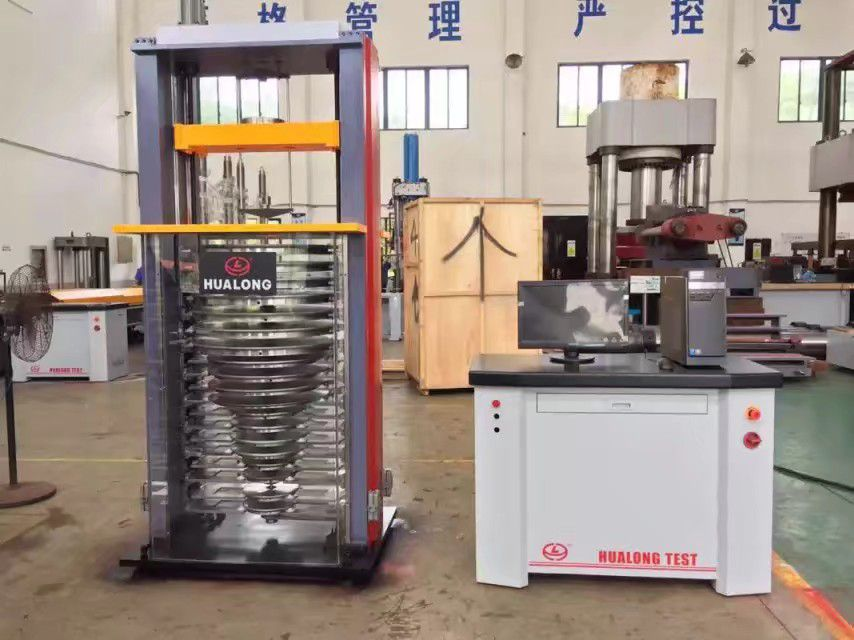

10 kN Force Standard Compression and Tension Machine

1. Introduction

The LBJ Series standard load testing machine is a measuring instrument for force value calibration, which can be used for tensile and compression tests.It is mainly composed of main machine, table type electric control cabinet and computer system.

2. Specifications

①　l Weight group: 100N four blocks, 200N four blocks, 300N one block, 500N three blocks, 1000N seven blocks

②　l Measurement range: 100N—10kN

③　l Force accuracy: 0.005%

④　l Adding and unloading time: less than 10s

l Test space: no less than 200mm wide, pull/pressure two-way height: 400mm

Contact: sales@shhualong.com
