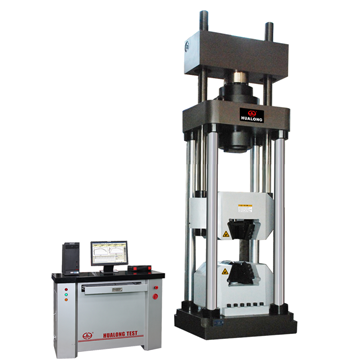

Servo-hydraulic Universal Testing Machine (Special Load Frame)

•Top seated cylinder Structure makes the installation of frame without complicated foundation construction.

•Extra-length screws and columns, with an adjustable upper crosshead, to increase the available test space for longer test specimens.

•Semi-open front hydraulic wedge clamps for easier loading and allowing rapid loading and unloading of specimens.

•Rigid 4-column load frame construction providing superior axial and lateral stiffness and minimum maintenance, low reaction at specimen failure.

•Servo valve attached direct on actuator providing close-coupled servo valve and accumulators for improved performance and reduced pressure fluctuations.

•With digital displacement transducer for the best positioning and measuring accuracy.

•Hydraulic operated wedge grips available.

•Including grip control system mounted direct at the machine.

•Tooling for tension, compression, bend/flex, shear and other tests.

•With chrome plated columns for easy cleaning and longest life.
