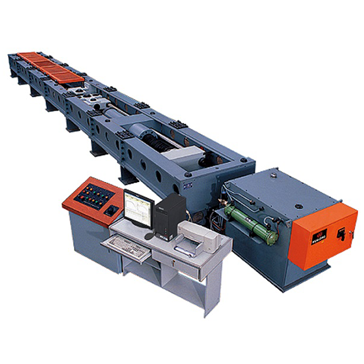

Horizontal Tensile Testing Machine (Hydraulic)

•Frames, fixtures and strain measurement devices can be designed & manufactured to accommodate many types of Products that require tensile tests.

•A facilitate motor driven Interchangeable & Adjustable carriage is provided supported on free moving rollers for easy position of the carriage appropriate to the nominal test specimen length.

•Large effective bed clearance enables testing of a wide range of specimens.

•Reverse cylinder loading design provides easy and precise calibration the whole system rather than independent load cell. Piston head and cylinder ends fitted with low friction seals.

•Various models: Max .Capacity up to 1000 tones.

•Loading accuracy well within + 1%.

•Guard options ensure operator safety.

•Custom systems available to meet unique requirements.
